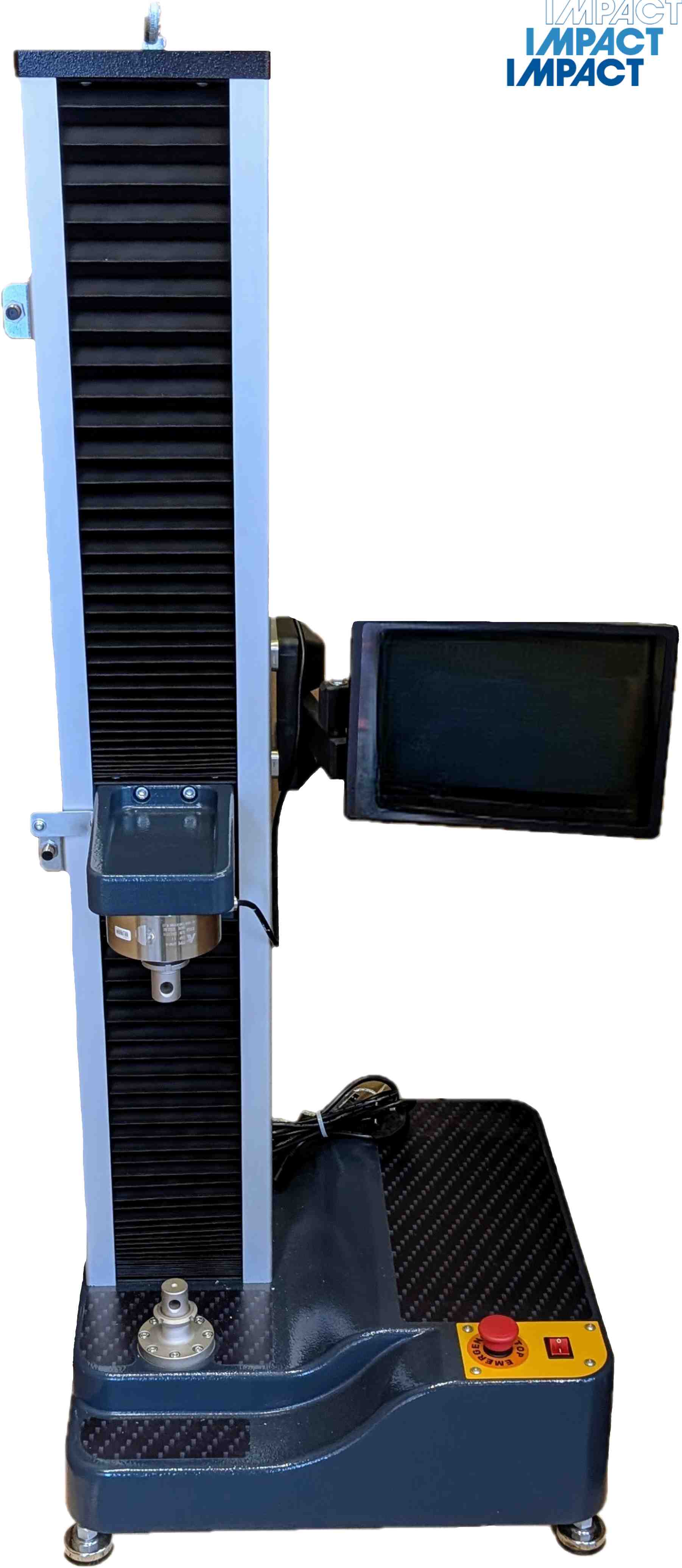

Single Column series are engineered for the testing of a diverse array of materials. This system is user-friendly and provides a measurement framework for the accurate and precise assessment of basic load, distance, and break applications. Additionally, it can be outfitted with a comprehensive selection of fixtures. They are designed with features that enhance testing efficiency and elevate the overall experience for the operator. These systems are capable of conducting tensile, compression, bending, puncture, creep, and cyclic tests.
Single Column Technical Features:
|
Load Capacity
|
0. 1 kN – 10 kN
|
|
Frame Type
|
Rigid frame in Single Column construction
|
|
Electronic Unit
|
New generation Litest x-v4-electronic control
(1000 data/sec) data acquisition and control system
|
|
Control
|
EDC Controller
Universal Testing Software (Load and Deformation/Displacement Control)
Litest x-config v4 software
|
|
Accuracy
|
± %0,5
|
|
Load Measuring
|
Class 0.5
|
|
Resolution
|
24 bit
|
|
Displacement Resolution
|
0.001 mm
|
|
Testing Speed range (Min- Max) at Full Force
|
0.001 - 1000 mm/min
|
|
Vertical Test Area
|
1000 mm* (Without Accessories)
|
|
Horizontal Test Area
|
According to Accessories
|
|
Software
|
Universal Testing Software
|
|
Power Requirement
|
220 Volt, 50/60Hz
|
Key Features:
- Space saving and compact design.
- Accurate measurement and excellent control.
- High technology and economical price.
- High response closed-loop control system.
- Overload protection.
- Free standing machine.
- Numerous different accessories for in almost any application or industry from plastics, metals, biomedical, elastomers, components, automotive, textiles and many more.
