INSITE WIRED LOGGERS

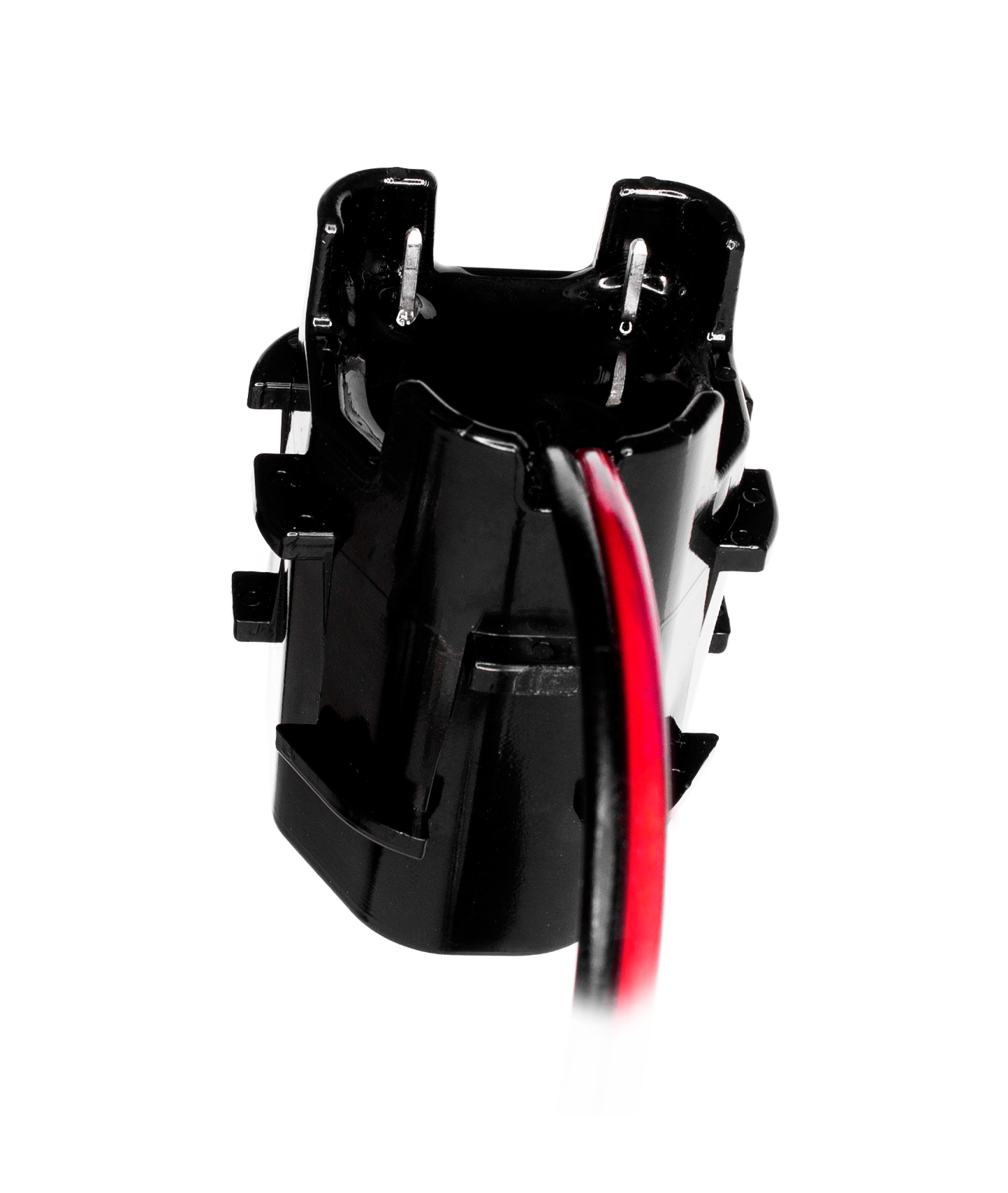

Bluetooth and RFID loggers that are fully imbedded in concrete may seem like a great idea at first, but the risks are great, and the cost can be very high in many ways. First, these loggers are expensive with high per-test costs. Second, these technologies and wet concrete often do not work well together. Critical data can be lost when communication with embedded loggers can’t be established. InSite loggers are wired to increase reliability and to reduce the per-test cost to your project Each logger measures and records concrete temperature every 60 seconds. Accuracy and reliability are increased by using temperature data from three on-board thermistors accurate to within 1°C. This triple-redundant system ensures backup thermistors are available if one should fail. To endure extreme temperatures at the core of many concrete pours, ordinary batteries will not get the job done. InSite logger batteries are rated to 125°C (257°F) so they survive well past the hottest curing temperatures.

SELF-STARTING

InSite loggers detect wet concrete and start logging data on their own at exactly the right time. When comparing temperature data or calculating concrete strength, start-time is critical. No need to waste time waiting for concrete to approach placed sensors. No need to adjust if concrete delivery is delayed. No need to worry - InSite starts autonomously.
