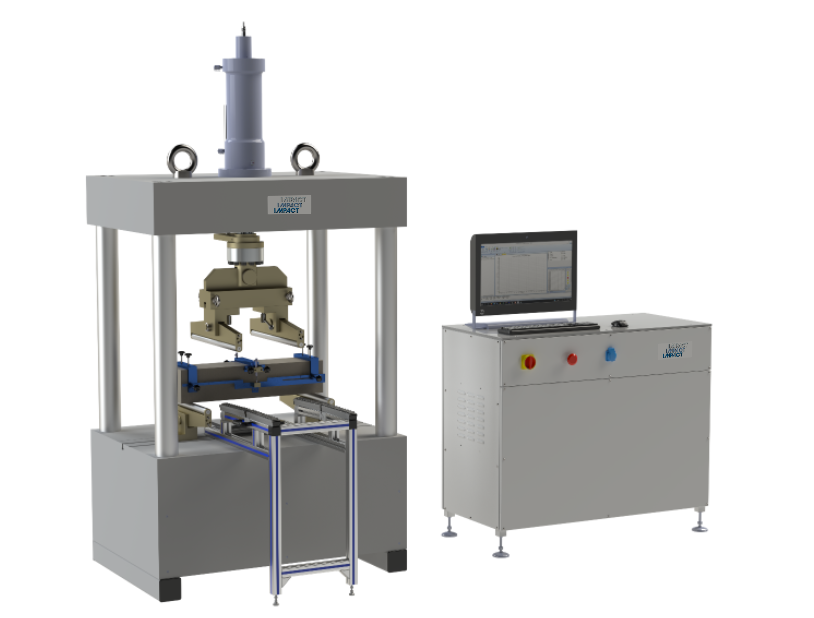

Flexural testing machine 300 kN for steel fibre and fibre-reinforced concrete, concrete beams and shotcrete

Flexural testing machine 300 kN for steel fibre and fibre-reinforced concrete, concrete beams and shotcrete

Flexural TESTING machine 300 kN for steel fibre and fibre-reinforced concrete, concrete beams and shotcrete


EN 14651 CMOD, EN 14488-3, EN 14888-5, EN 12390-5, ASTM C1550, ASTM C1609, ASTM C496




Flexural TESTING machine 300 kN for flexural strength testing and for the determination of the post-crack properties of steel fibre and fibre-reinforced concrete, concrete beams and shotcrete

According to EN 7500-1 and EN 12390-4 in a very wide measuring range class 1.








CodeCT880
Other StandardsEN 14651 CMOD, EN 14488-3, EN 14888-5, EN 12390-5 ASTM C1550, ASTM C1609, ASTM C496
Tariff90248000
or
Call Impact +44 (0)1294 602626

Flexural TESTING machine 300 kN for flexural strength testing and for the determination of the post-crack properties of steel fibre and fibre-reinforced concrete, concrete beams and shotcrete

According to EN 7500-1 and EN 12390-4 in a very wide measuring range class 1.


  • Suitable for high-precision force /displacement and deformation controller test procedures

  • Automatic switching between the control modes in one procedure

  • Extremely solid and stiff 4-column frame with a maximal frame deformation of 2.8 MN / mm

  • The upper bending roll is variable adjustable from 3- to 4-point bending also compression platens are adaptable

  • Double-acting test cylinder in servoslide quality with integrated
