3000kN Block, Cube and Cylinder Compression Machine

3000kN Block, Cube and Cylinder Compression Machine

2 Channel Automatic Console with digital display and RS232, motorised power pack to ASTMC39, AASHTO T22, UNI6686P1+2, NF P18-411, ISO7500, UNE 88304, EN12390 P4, BS1881 P115

British StandardBS1881 Pt115
Other StandardsEN12390 Pt4, ASTMC39, AASHTO T22, ISO7500
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

Automatic 3000kN Block, Cube and Cylinder Compression Machine designed to test blocks up to 100mm x 215mm x 440mm, cube sizes 100mm, 150mm and 200mm and cylinders up to 320mm long Fully compliant with BS EN 12390-4 in terms of Force measurement & the stringent stability, alignment & restraint requirements of the Load Frame.

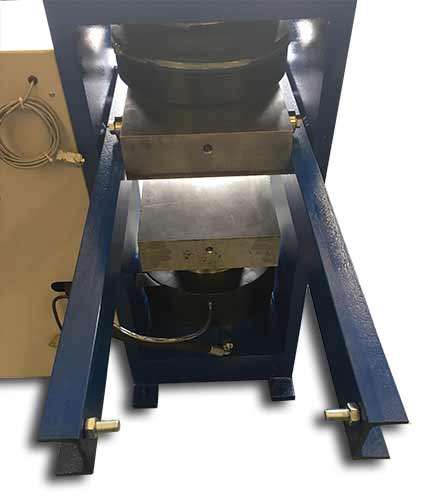

  • Compact Welded steel load frame with a high degree of mechanical stability
  • Ball-seated upper platen
  • Lower platen, positively located on the loading ram, marked to allow centring of both cubes and cylinders
  • Loading ram with cover to prevent debris damaging it during testing and a limit switch to prevent it from exceeding the maximum limit of travel

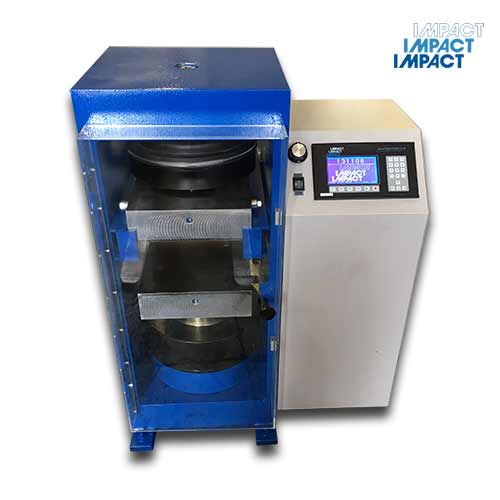

  • Frame fitted with perspex guards to protect the operator
  • Front guard is hinged for ease of access

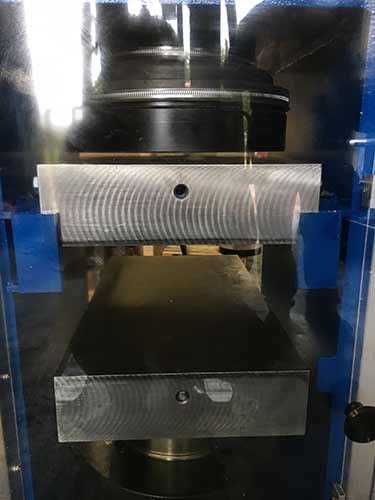

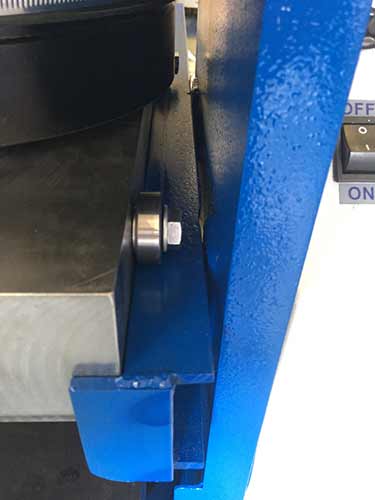

  • Supplied with two 445mm x 250mm x 75mm block platens and platen rail system
  • Supplied with 300mm diameter upper and lower platens and 200mm diameter distance pieces to allow for testing cubes and cylinders

Automatic Machine

  • Set test parameters then automatic mode gives one-touch operation
  • Manual override
  • Compression range 0 to 3000 kN
  • Real time graph display on screen
  • Units in mPa or kN
  • On-board memory: up to 100 test results
All data-entry and editing functions are available via the keypad and display on the front of the control console.

Motorised power pack

With hydraulic loading allowing fine control, accurate pace regulation and rapid platen approach facility

Operates on 220V 50/60Hz (110V version available)

Specifications (frame only)

Height 1165mm
Width 550mm
Depth 480mm
Maximum vertical clearance 375mm
Maximum ram travel 50mm
Distance Pieces supplied 2 x 50mm, 2 x 80mm

Impact can offer a full on-site calibration service to BS EN 12390-4and BS EN7500-1. Impact Test Equipment has been accredited to the United Kingdom Accreditation Service (UKAS) since February 1992.

ClickClick to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk


Click Click to download a free copy of the communication software in a zip file
