Curing Cabinet to EN196-1

Curing Cabinet to EN196-1

with digital thermostat and 3 shelves, 230V 50/60Hz

Other StandardsEN196-1, ASTM C109, ASTM C190, ASTM C191
Approx. Weight (kg)60
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

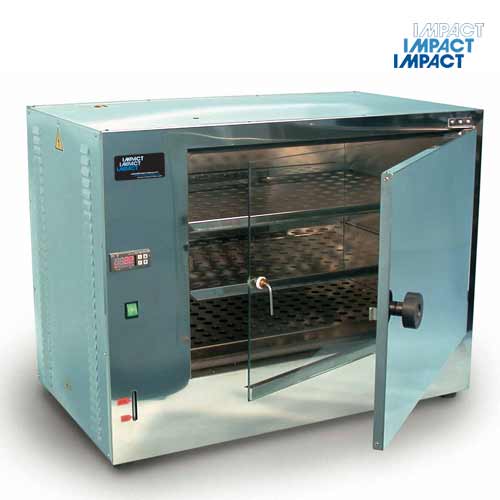

For curing mortar and cement specimens at controlled humidity and temperature.

Both external and internal walls are manufactured from stainless steel and insulated with 50mm thick glass wool.
The cabinet has an inner inspection glass door.
Temperature range: from ambient to 70 °C, with digital thermostat.
A dual safety/thermostat with higher thermic threshold ensures safe working conditions.

Humidity range 90% to saturation
Internal dimensions 620mm x 440mm x 400mm
External dimensions 900mm x 700mm x 800mm
Power supply 230V 1ph 50/60 Hz 1000 W
Weight 60 Kg approximately

Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site
