Digital Cone Penetrometer

Digital Cone Penetrometer

with 5 digit LCD display

Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

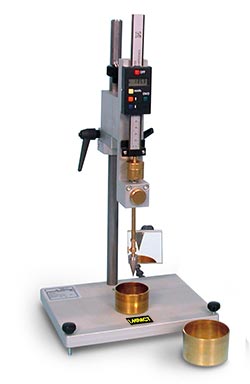

The digital cone penetrometer gives a readout of the penetration values on a 5 digit LCD display.

Readings are in mm or inches, with a 0.1mm resolution, zero set in any position.

The unit consists of:
  • Aluminium base with levelling screws and spirit level.
  • Chromed vertical rod with micrometric vertical displacement device
  • 5 digit LCD display
  • Brass slider, with free fall, stop and release push button, automatic zero set
Power: 1.5V battery
Dimensions: 220mm x 170mm x 410mm

Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site
