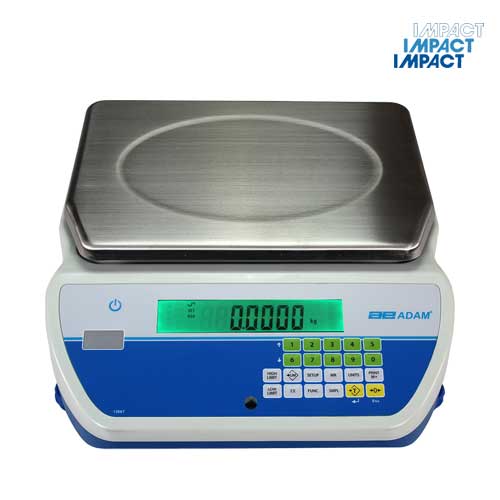

Electronic Balance 32kg capacity

Electronic Balance 32kg capacity

Electronic Balance 32kg capacity
Readability 1g
* Below Balance Weighing Facility *


Approx. Weight (kg)3.3
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

The Backlit display changes colour to show if a sample is under, over, or within the preset limits. Store and recall up to 100 product lookups or piece weights to improve efficiency in production or warehouse applications. Designed to be tough, the BA025 features ABS housing, stainless steel platform, non-slip feet and load cell protection.


  • Backlit display changes colour for quick notification of checkweighing limits
  • Colour-coded keys facilitate quick recognition of the most frequently used buttons
  • Large, grade 304 stainless steel pan allows easy cleaning
  • RS-232 interface is available to provide speedy connection to computers and printers
  • Optional USB interface simplifies data communication
  • Sealed keypad protects against dirt and spills
  • Solid ABS housing is durable for industrial use
  • Adjustable levelling feet help optimise setup
  • Drip channels help divert spills away from the scales internal components
  • Checkweighing with audible alarm
  • External calibration allows for verification and adjustment with weights
  • Internal counting resolution 1:600,000 for precise results
  • Parts counting optimisation automatically refines piece weight as parts are added
  • Parts counting with freely selectable sample sizes
  • Preset tare function speeds the process of repetitive weighing
  • Product look up (PLU) memory locations store a range of items for recall
  • Programmable auto power-off to save energy
  • Rechargeable battery included for operation almost anywhere

Capacity 32kg
Readability 1g
Stabilisation time 2 seconds
Platform size 210 x 300mm
Units of measurement g, kg, lb, oz, lb:oz
Interface RS-232 optional USB
Calibration External
Display Backlit LCD 15mm high digits
PLU memories 100
Power supply 12VDC 50/60Hz 800mA adapter / Internal rechargeable battery
Operating temperature -10°C 40°C
Real-time clock Real-time clock
Housing ABS Plastic
Overall dimensions (w x d x h) 326 × 355 × 115mm
Net weight 3.29kg


ClickClick to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
