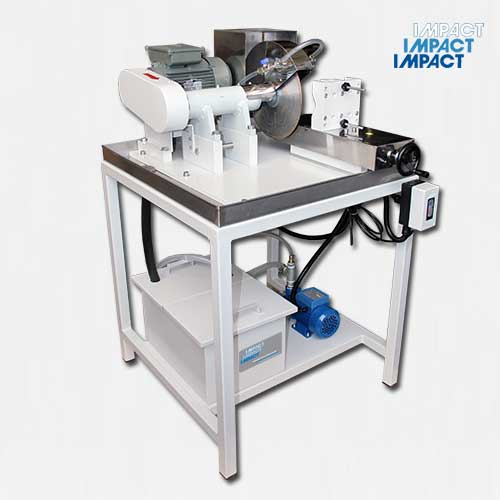

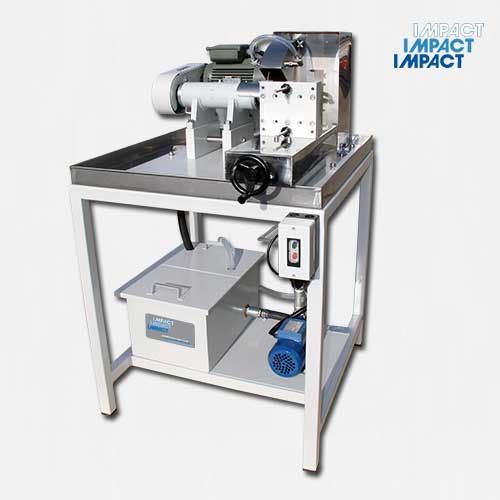

Core Trimmer with coolant pump

Core Trimmer with coolant pump

Core Trimmer with coolant pump
cutting 300mm deep x 100mm diameter


CodeSL990
Tariff90248090
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626

Specification
Cutting Saw Depth : 300 mm
Cutting Size Dia: 100 mm
Trimming Saw Cutting Depth: 300 mm
Trimming Dia: 100 mm
Forward Reverse Stroke: 100 mm
Left-Right Stroke: 20 mm
Motor: 1.1 kW 3000 rpm 220 V
Power Requirement: 380 Volt, 50/60Hz
Ambient Operating Temperature: 0℃~40℃, Moisture 10% - 70%
Dimensions of Device: Approx. 100x80x135 mm (WxLxH)

Supplied complete with water circulation cooling system and sample clamping apparatus.

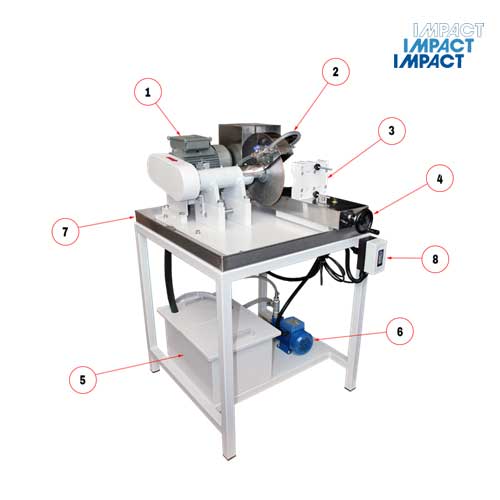

Parts identification, see third image.

  1. Motor
  2. Water Supply
  3. Sample Holder
  4. Left-Right Stroke
  5. Water Tank
  6. Water circulation pump
  7. Base
  8. On-Off Switch
