4 Channel type K Thermometer

4 Channel type K Thermometer

4 Channel type K Thermometer
range -100 to 1300°C
CodeTH083
Tariff902480 10 0
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

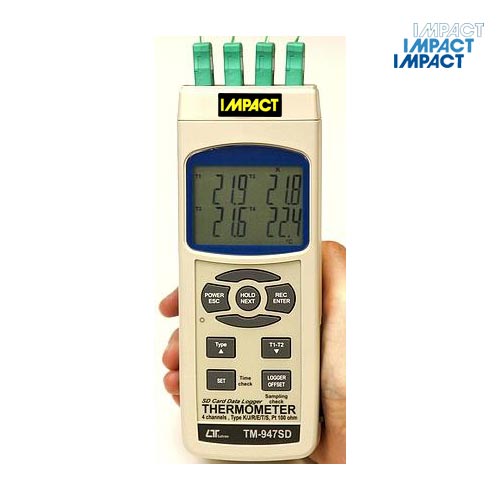

A hand-held digital thermometers which has four thermocouple input channels, via miniature sockets, and can measure six thermocouple types (supplied a K type). It can log a virtually unlimited number of data points to an SD card up to 16GB capacity.

Data is recorded onto the card in .xls format for opening in MS Excel without the need for other proprietary software.
SD Card not supplied. Most SD cards of 16GB or less should be compatible.

Specification
Input Range Resolution Accuracy Example of Accuracy
Type K -100 - 1300°C 0.1°C -100 to -50°C ±0.4% +1.0°C ±3.7°C @ 800°C
-50 to 1000°C ±0.4% +0.5°C
1°C 1000 to 1300°C ±0.4% +1.0°C


Accuracy applicable for instrument ambient temperatures of 18-28°C. When in °F mode, resolution for values above 1000°F is 1°F.

  • Input: 4x Thermocouples via miniature size connectors
  • Reading Rate: 1 times per second (approx.)
  • Dimension: 177 x 68 x 45mm (HxWxD) Weight: 278g (without batteries)
  • Battery: 6x 1.5V AA (supplied)
