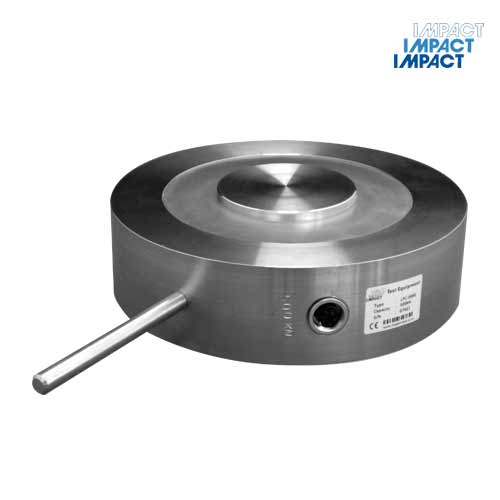

500kN Load Cell with Digital Indicator supplied with UKAS calibration certificate

500kN Load Cell with Digital Indicator supplied with UKAS calibration certificate

500kN Load Cell with Digital Indicator supplied with UKAS calibration certificate
500kN capacity for Plate Bearing Test with UKAS certificate
BS1377-9
CodeSL361/N
British StandardBS1377-4
Approx. Weight (kg)23.5
Tariff90248090
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

Low Profile Load Cells SL358, SL359, SL360, SL361
Specification

Rated Capacity (RC)

kN

50, 100, 250, 500

Working Load Limit

%RC

150

Rated Output (RO)

mV/V

2 (nominal)

Zero Load Output

%RO

±1

Combined Error

%RO

<0.2

System Accuracy

%Reading

<1

Repeatability

RO

0.05

Excitation Voltage

dc

5 to 12

Bridge Resistance

ohms

700

Insulation @ 50Vdc

ohms

>500

Operating temp. Range

°C

-10 to +60

Environmental Protection

IP

64

(All percentages relate to Rated Capacity / Rated Output)

Construction

17-4PH Stainless Steel

Connections

Recessed 5-way panel socket



Pin 1

+Excitation



Pin 2

-Excitation



Pin 3

+Signal



Pin 4

-Signal

Indicator Specification

Excitation voltage

Vdc

5 (±4%)

Offset Stability

ppm of FS*

±80

Gain Stability

ppm of FS*

±100

Non-Linearity

ppm of FS*

±50

Thermal Drift

ppm/°C

<25

Operating temp. Range

°C

-10 to +50

Environmental Protection

IP

65

Battery Life

hours

450 (typical)

Update Rate

mS

40 max. (configurable)

(* FS = Full Scale)

Construction

ABS

Connections

Flush mount 5-way panel socket



Pin 1

+Excitation



Pin 2

-Excitation



Pin 3

+Signal



Pin 4

-Signal

Cable Specification

Cores :

4 x 0.22m², polyurethane

Sheath :

Blue polyurethane, Ø5mm

Length :

3 Metres
