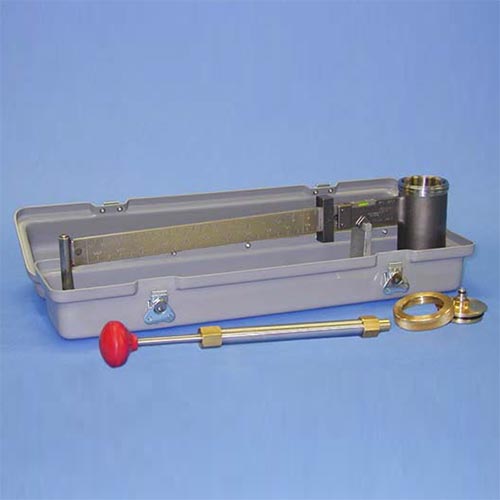

Pressurised Tru-Wate Mud Balance

Pressurised Tru-Wate Mud Balance
supplied with carrying case
Click to save page as PDFSave Page to PDF
Call Impact +44 (0)1294 602626

The TRU-WATE Balance is an instrument for measuring the absolute density of a fluid sample. With the TRU-WATE Balance, the density of a fluid sample, such as cement slurry, can be measured in a fixed volume sample under pressure. By pressurising the sample cup the entrained air or gas can be decreased to a negligible volume, thus providing a slurry density measurement more closely in agreement with the true density which will be realised under down-hole conditions.

Measuring Range
lb/gal 7-22
lb/sq in/1000ft of depth 350-1150
lb/cu ft 50-165
gms/cm3 (Specific Gravity) 0.75-2.60
