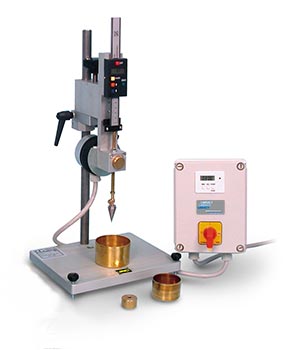

Semi-Automatic Digital Cone Penetrometer

Semi-Automatic Digital Cone Penetrometer

Semi-Automatic Digital Cone Penetrometer
with 5 digit LCD display


CodeSL189
Approx. Weight (kg)15
Tariff90248090
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626

The digital cone penetrometer gives a readout of the penetration values on a 5 digit LCD display.
Readings are in mm or inches, with a 0.1mm resolution, zero set in any position.
Equipped with a magnetic controller device with electronic digital programmable timer that automatically releases the plunger head and ensures free falling of the cone during the 5-seconds test

The unit consists of:
  • Aluminium base with levelling screws and spirit level.
  • Chromed vertical rod with micrometric vertical displacement device
  • 5 digit LCD display
  • Controller and timer unit
  • Brass slider, with free fall, stop and release push button, automatic zero set
Power supply: 230V 50Hz 1ph, 200W
Dimensions: 220mm x 280mm x 410mm
Weight: 15 kg approx.



Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
