Direct Digital Shear Apparatus

Direct Digital Shear Apparatus
complete with 10:1 lever loading device
BS1377-7
CodeSL372
British StandardBS1377-7
Tariff902480 90
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

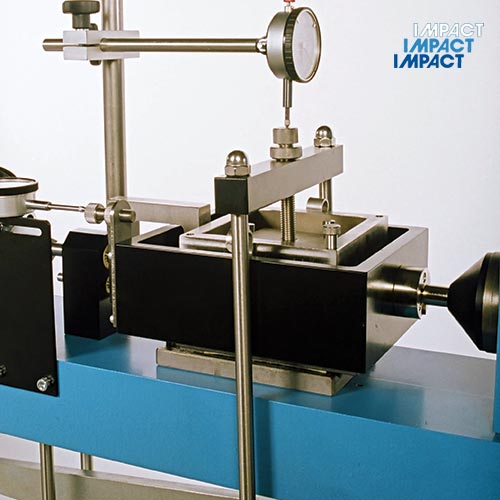

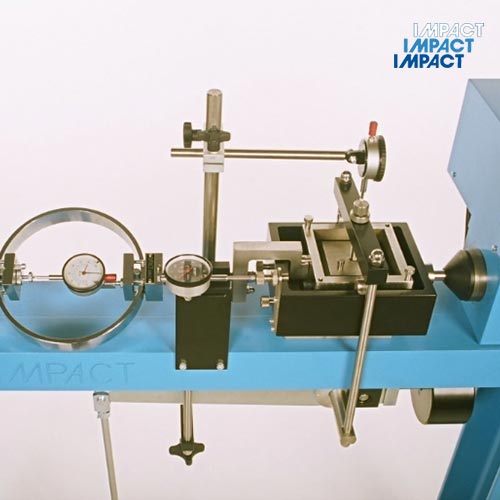

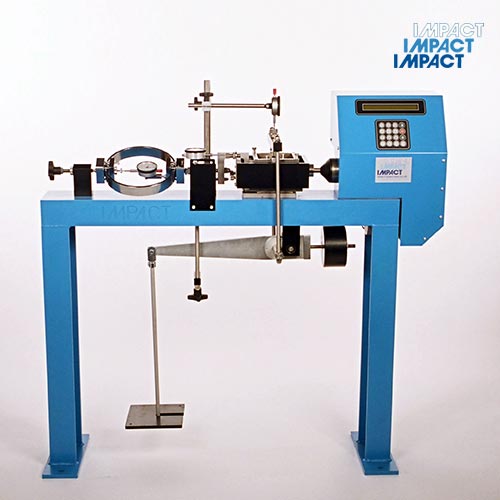

Digital direct shear box, floor mounted with carriage assembly and load hanger with 10:1 lever loading device.

To accept the following sample sizes:

  • 60mm diameter
  • 60mm square
  • 100mm diameter
  • 100mm square
  • 2.5 inch diameter

Features

  • Microprocessor controlled digital stepper motor

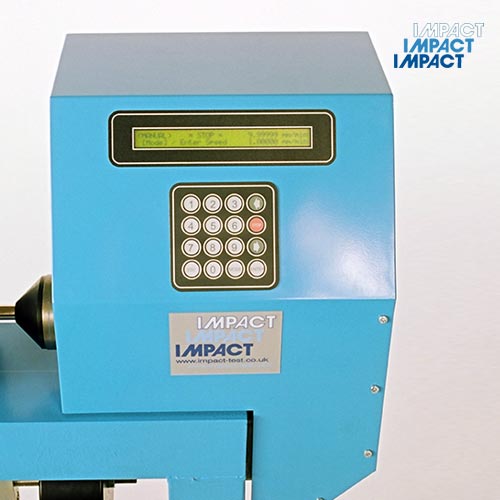

  • Control via the digital display with keyboard
  • Return datum facility
  • Fully steplessly variable speed over the range of 0.00001 to 9.99999mm/minute
  • RS232 port
  • Forward/reverse travel limit switches
  • Will accept either analogue or digital measuring devices
Model supplied may differ slightly from that shown.

Test Sets

To aid site and laboratory staff in choosing and specifying the equipment and accessories required to perform a specific test.

ASTMD3080A
Direct shear, 2.5" diameter to ASTM D3080 - Analogue

ASTMD3080D
Direct shear, 2.5" diameter to ASTM D3080 - with Data Logging

BS1377-7/4-100mm
Shear strength by direct shear (small shearbox) 100mm square sample to BS1377 part 7/4-100mm

BS1377-7/4-60mm
Shear strength by direct shear (small shearbox) 60mm square sample to BS1377 part 7/4-60mm

BS1377-7/4D-100mm
Shear strength by direct shear (small shearbox) 100mm square sample with data logging to BS1377 part 7/4D-100mm

BS1377-7/4D-60mm
Shear strength by direct shear (small shearbox) 60mm square sample with data logging to BS1377 part 7/4D-60mm


Click
Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
