Automatic Mortar Mixer

Automatic Mortar Mixer
5 Litre capacity
CodeCE285
Other StandardsEN196/1, EN 196/3, EN 480/1
Weight (kg)45
Tariff902480 90
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

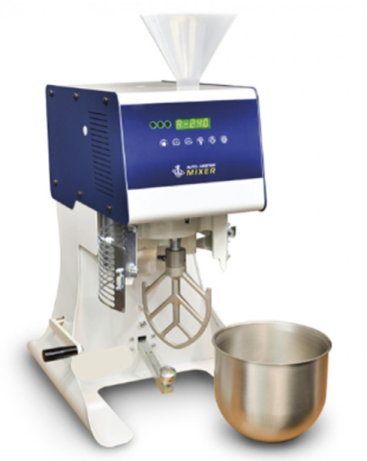

Picture shows beater which must be ordered separately
This hard wearing mixer is designed efficiently mix cement pastes and mortar, using three automatic mixing cycles, in compliance with: EN196/1, EN 196/3 and EN 480/1. It is possible to select either manual operation, or one of the two automatic programs. By operating automatically on changes of speed, stops and mixing sequences, indicated by an audible signal, the unit performs the mixing cycle. The unit is equipped with an automatic sand dispenser, which fills the mixing bowl with the sand for a period of 30seconds (only EN 196/1 program). Complete with safety door conforming to 89/392/CEE Directive; if opened it automatically stops the machine.
Supplied complete with stainless steel bowl.
To comply with EN standard order CE285/1 Stainless Steel Beater.

Specification

Revolving action - 140 or 285rpm
Planetary action - 62 or 125 rpm
Bowl capacity 4.7 litres
Power supply: 220-240V 50Hz 1ph
Dimensions: 340 x 460 x 700mm
Weight: 45kg



Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
