Jolting Table for prism compaction

Jolting Table for prism compaction
for use with 3 gang mould CE240 to EN 196-1, EN ISO 679, BS 3892, UNE 80101/ NF P15-412
CodeCE230
British StandardBS3892
Other StandardsEN196-1
Weight (kg)65
Tariff902480 90
Click to save page as PDFSave Page to PDF

Used to compact 40mm x 40mm x 160mm cement mortar prisms in the three gang mould CE240. The table consists of a platform holding the mould, seated on a rotating cam driven at 60 revolutions per minute. The jolting group is connected to the table by bayonet joints for quick checking of the weights. The150mm drop height is adjustable to maintain it after intensive use.
The table is supplied with a separate control panel with main switch, automatic digital drop counter and start/stop button.

Power supply: 220-240V 50Hz 1ph 500 W
Dimensions: 1000mm x 380mm x 420mm
Weight: 65kg

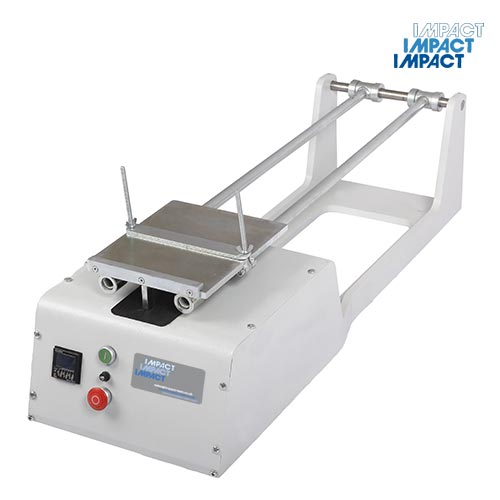

Image shows table with mould CE240 and hopper CE241. Mould and hopper are available separately.

ClickClick to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
