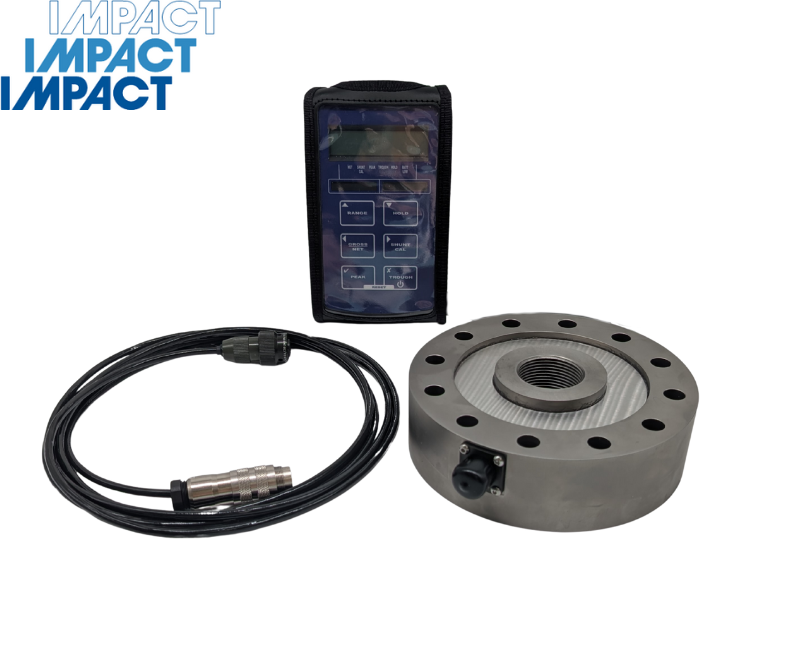

250kN Load Cell with Digital Indicator
250kN Load Cell with Digital Indicator
250kN capacity for Plate Bearing Test
BS1377-9
CodeSL360
British StandardBS1377-4
Approx. Weight (kg)5.163
Tariff90248000

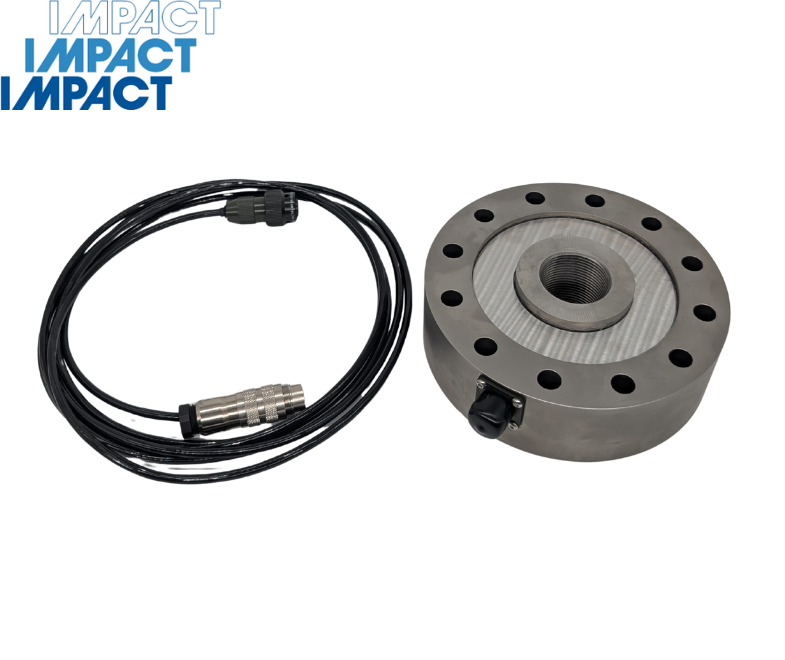

Low Profile Load Cells SL358, SL359, SL360, SL361
Image shows SL359 100kN Load Cell which has the same dimensions
Specification
| Rated Capacity (RC) |
kN
|
50, 100, 250, 500
|
|
Working Load Limit
|
%RC
|
150
|
|
Rated Output (RO)
|
mV/V
|
2 (nominal)
|
|
Zero Load Output
|
%RO
|
±1
|
|
Combined Error
|
%RO
|
<0.2
|
|
System Accuracy
|
%Reading
|
<1
|
|
Repeatability
|
RO
|
0.05
|
|
Excitation Voltage
|
dc
|
5 to 12
|
|
Bridge Resistance
|
ohms
|
700
|
|
Insulation @ 50Vdc
|
ohms
|
>500
|
|
Operating temp. Range
|
°C
|
-10 to +60
|
|
Environmental Protection
|
IP
|
64
|
|
(All percentages relate to Rated Capacity / Rated Output)
|
|
Construction
|
17-4PH Stainless Steel
|
|
Connections
|
Recessed 5-way panel socket
|
|
|
Pin 1
|
+Excitation
|
|
|
Pin 2
|
-Excitation
|
|
|
Pin 3
|
+Signal
|
|
|
Pin 4
|
-Signal
|

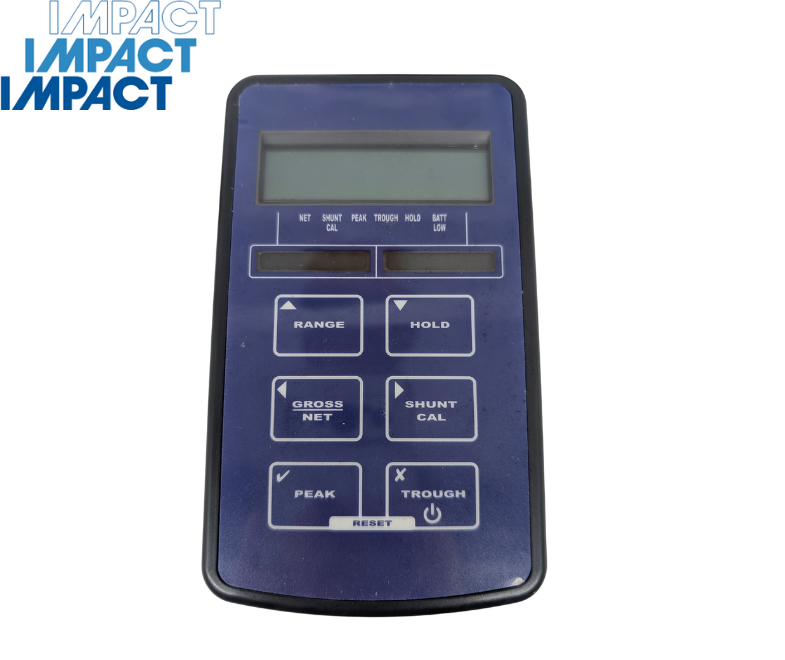

Indicator Specification
| Excitation voltage |
Vdc
|
5 (±4%)
|
|
Offset Stability
|
ppm of FS*
|
±80
|
|
Gain Stability
|
ppm of FS*
|
±100
|
|
Non-Linearity
|
ppm of FS*
|
±50
|
|
Thermal Drift
|
ppm/°C
|
<25
|
|
Operating temp. Range
|
°C
|
-10 to +50
|
|
Environmental Protection
|
IP
|
65
|
|
Battery Life
|
hours
|
450 (typical)
|
|
Update Rate
|
mS
|
40 max. (configurable)
|
|
(* FS = Full Scale)
|
|
Construction
|
ABS
|
|
Connections
|
Flush mount 5-way panel socket
|
|
|
Pin 1
|
+Excitation
|
|
|
Pin 2
|
-Excitation
|
|
|
Pin 3
|
+Signal
|
|
|
Pin 4
|
-Signal
|
Cable Specification
|
Cores :
|
4 x 0.22m², polyurethane
|
|
Sheath :
|
Blue polyurethane, Ø5mm
|
|
Length :
|
3 Metres
|
