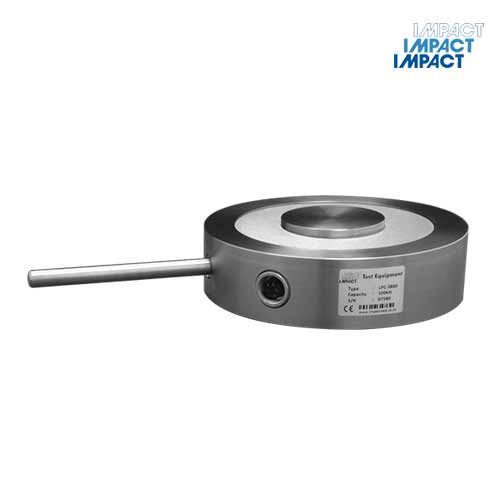

100kN Load Cell with Digital Indicator
100kN Load Cell with Digital Indicator
100kN capacity for Plate Bearing Test
BS1377-9
CodeSL359
British StandardBS1377-4
Approx. Weight (kg)6.5
Tariff90248000

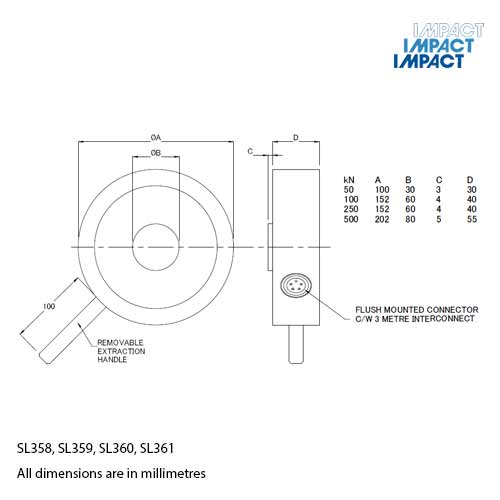

Low Profile Load Cells SL358, SL359, SL360, SL361
Specification
| Rated Capacity (RC) |
kN |
50, 100, 250, 500 |
|
Working Load Limit |
%RC |
150 |
|
Rated Output (RO) |
mV/V |
2 (nominal) |
|
Zero Load Output |
%RO |
±1 |
|
Combined Error |
%RO |
<0.2 |
|
System Accuracy |
%Reading |
<1 |
|
Repeatability |
RO |
0.05 |
|
Excitation Voltage |
dc |
5 to 12 |
|
Bridge Resistance |
ohms |
700 |
|
Insulation @ 50Vdc |
ohms |
>500 |
|
Operating temp. Range |
°C |
-10 to +60 |
|
Environmental Protection |
IP |
64 |
|
(All percentages relate to Rated Capacity / Rated Output) |
|
Construction |
17-4PH Stainless Steel |
|
Connections |
Recessed 5-way panel socket |
|
|
Pin 1 |
+Excitation |
|
|
Pin 2 |
-Excitation |
|
|
Pin 3 |
+Signal |
|
|
Pin 4 |
-Signal |

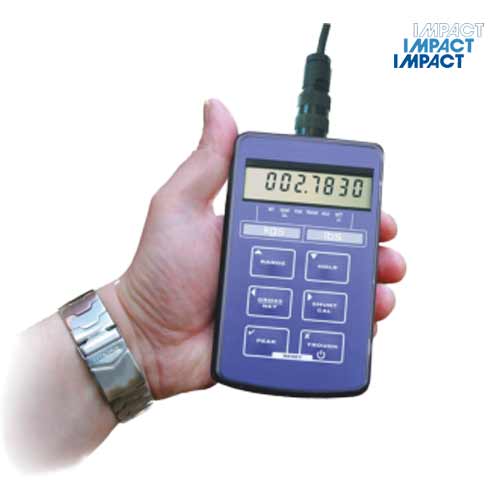

Indicator Specification
| Excitation voltage |
Vdc |
5 (±4%) |
|
Offset Stability |
ppm of FS* |
±80 |
|
Gain Stability |
ppm of FS* |
±100 |
|
Non-Linearity |
ppm of FS* |
±50 |
|
Thermal Drift |
ppm/°C |
<25 |
|
Operating temp. Range |
°C |
-10 to +50 |
|
Environmental Protection |
IP |
65 |
|
Battery Life |
hours |
450 (typical) |
|
Update Rate |
mS |
40 max. (configurable) |
|
(* FS = Full Scale) |
|
Construction |
ABS |
|
Connections |
Flush mount 5-way panel socket |
|
|
Pin 1 |
+Excitation |
|
|
Pin 2 |
-Excitation |
|
|
Pin 3 |
+Signal |
|
|
Pin 4 |
-Signal |
Cable Specification
|
Cores : |
4 x 0.22m², polyurethane |
|
Sheath : |
Blue polyurethane, Ø5mm |
|
Length : |
3 Metres |
