CBR Motorised Load Frame

CBR Motorised Load Frame

CBR Motorised Load Frame
to BS and ASTM standards to BS 1377:4
CodeSL075
British StandardBS1377-4
Other StandardsEN13286-46
Approx. Weight (kg)120
Tariff90248090
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626

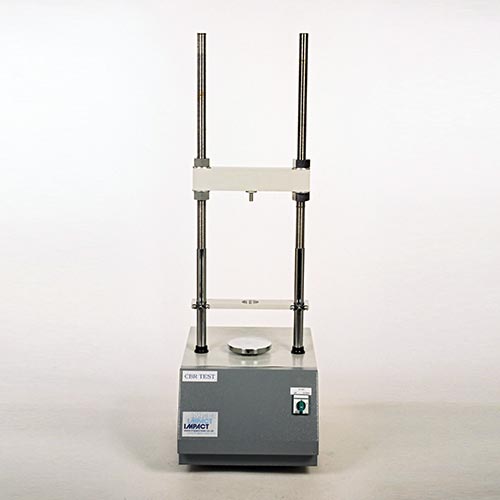

The Impact SL075 CBR machine is a motorised load frame specifically designed to carry out CBR tests. It is a bench-mounted system with a motorised drive. The speed is pre-set to 1.2mm/min which covers both ASTM and BS standards. Supplied complete with a limit of travel safety switch.
Additional items required to perform the test such as load ring, dial gauge, CBR mould etc. are not supplied as part of the CBR load frame.

Packed dimensions: 500mm W x 750mm L x 1470mm H

Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
