Infrared Thermometer with Laser Alignment

Infrared Thermometer with Laser Alignment

Infrared Thermometer with Laser Alignment
range -59.9 to 999.9°C with a 0.1°C (-9.9 to 199.9°C) or 1°C resolution
CodeTH132
Tariff902480 90
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626

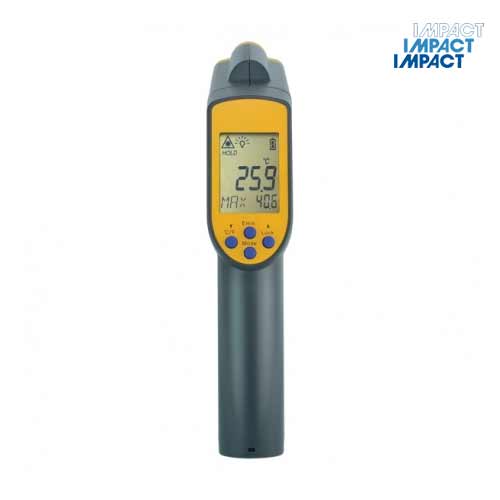

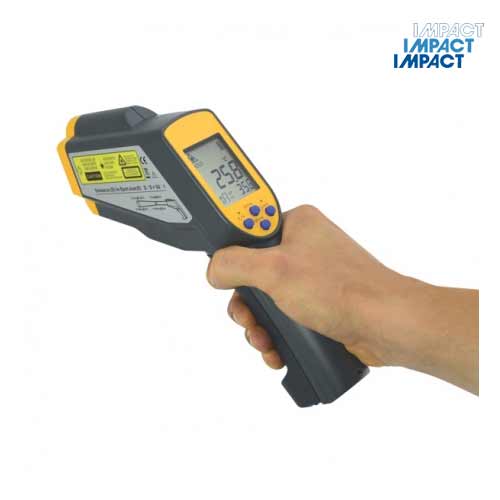

Professional infrared, gun-shaped, non-contact thermometer with dual laser dot alignment. The thermometer incorporates a 50:1 optic ratio (target distance/diameter ratio), enabling users to measure small targets from a distance. Stand a safe and comfortable distance from the target, point the thermometer at the surface to be measured, pull the trigger and instantly read the temperature. Ideal for measuring the temperature of any item that is difficult to reach. This enables the user to measure most surfaces accurately and quickly.
  • auto-power off & backlight functions
  • wide temperature range -59.9 to 999.9°C
  • robust housing for durability
  • high target ratio of 50:1
This infrared thermometer measures the surface temperature over the range of -59.9 to 999.9°C with a 0.1°C (-9.9 to 199.9°C) or 1°C resolution. It incorporates an auto power off facility that turns the instrument off after 60 seconds, maximising battery life (can be disabled, if required). Each unit has a clear, easy to read, backlit custom LCD display that indicates both the temperature and the emissivity. The thermometer features a four-button keypad, allowing the user to select the mode required, i.e. max, min, differential and average temperatures, view the max/min high and low alarms and adjust the emissivity from 0.1 to 1.0 in 0.01 increments (default set at 0.95).

The thermometer also incorporates a thermocouple socket that will accept a type K thermocouple probe. A probe is not included and must be purchased separately. It is supplied in a protective ABS carrying case.

An optional strong magnetic holder is also available. The holder screws into the bottom of the thermometer's housing, allowing the unit to be mounted onto a metal surface for continuous monitoring.

Specification
range
infrared: -59.9 to 999.9°C
range
probe: -64 to 1400°C - Probe not supplied
resolution 0.1 °C/°F
accuracy infrared: ±2 °C or ±2 % of reading whichever is greater
accuracy probe (not supplied) : ±1 °C or ±1 % of reading whichever is greater
field of view target ratio 50:1
emissivity 0.95 default - adjustable 0.01 to 1
battery 2 x AAA alkaline
battery life 180 hours continuous use
display custom LCD
backlight Yes
dimensions 47 x 170 x 240mm
weight 395 grams
case material ABS plastic
guarantee one year
measurement scale Celsius/Fahrenheit
