5000ml Pyknometer (complete) to EN1097-6

5000ml Pyknometer (complete) to EN1097-6

5000ml Pyknometer (complete) to EN1097-6

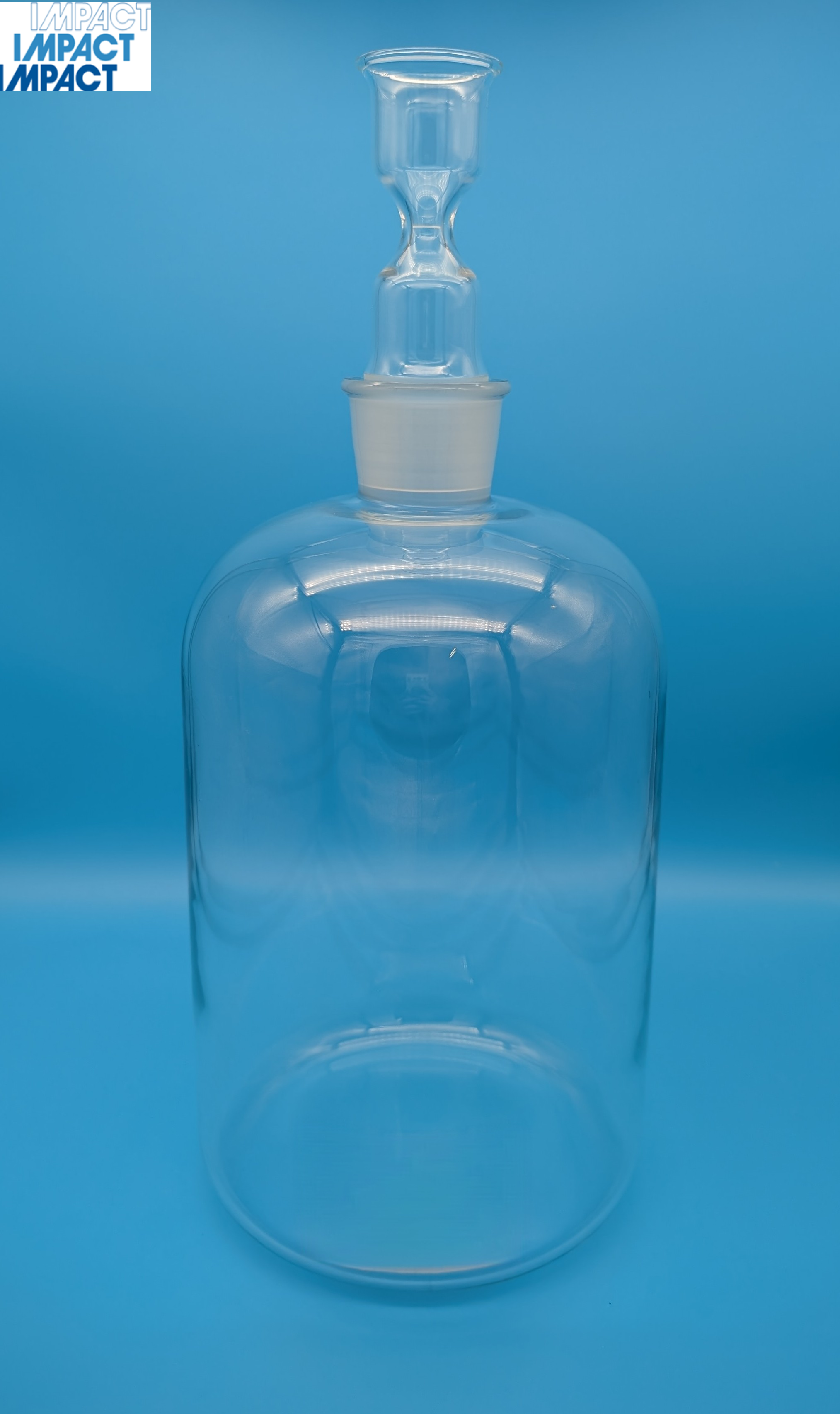

5000ml capacity glass pyknometer, complete
Other StandardsEN1097-6
Approx. Weight (kg)2.26
Click to save page as PDFSave Page to PDF
Call Impact +44 (0)1294 602626

Image shows AG111, 500ml capacity pyknometer.
Specifically designed for the Determination of Particle Density and Water Absorption to EN1097-6 by the pyknometer method for aggregates passing 31.5mm sieve but retained on a 63 micron sieve.

Pyknometers to EN1097-6 are available in the following sizes:

Part Number Capacity
AG109 250ml capacity -complete Pyknometer
AG111 500ml capacity -complete Pyknometer
AG112 1000ml capacity -complete Pyknometer
AG113 2000ml capacity -complete Pyknometer
AG114 5000ml capacity -complete Pyknometer

Replacement funnels and bottles are also available, as below.

Part Number Spare Part
AG109/1 250ml capacity top funnel only
AG111/1 500ml capacity top funnel only
AG112/1 1000ml capacity top funnel only
AG113/1 2000ml capacity top funnel only
AG114/1 5000ml capacity top funnel only
AG109/2 250ml capacity bottle only
AG111/2 500ml capacity bottle only
AG112/2 1000ml capacity bottle only
AG113/2 2000ml capacity bottle only
AG114/2 5000ml capacity bottle only
