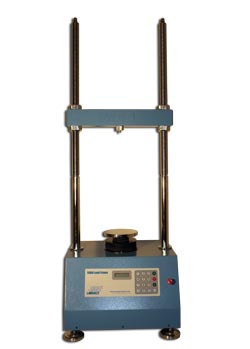

50kN Triaxial Load Frame - Digital with fully variable speed limit

50kN Triaxial Load Frame - Digital with fully variable speed limit
Can be used for Triaxial (both Quick Undrained and Effective Stress), CBR (to BS and ASTM standards), Marshall Tests and many more.
BS1377-7, BS1377-8
CodeSL505
British StandardBS1377-7
Weight (kg)100
Tariff902480 90
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

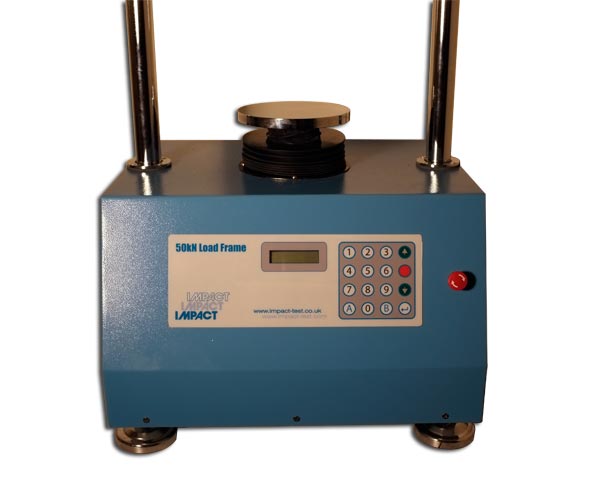

This 50kN Load Frame is designed, manufactured and tested to the highest quality, to ensure, reliability and durability with trouble free operation for site or laboratory environments. It is easy to use, with a fully variable speed limit and 2 pre-programmable buttons for frequently used test speeds.

  • UK Manufactured Load Frame
  • Fully Variable Speed from 0.00001 to 50.8 mm/min

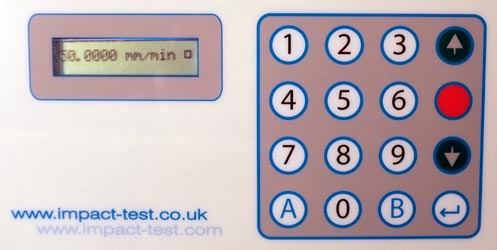

  • Pre-programmable speed buttons A and B
  • Microprocessor design/control
  • Accurate Stepper Motor Speed Control
  • Rapid Approach Speed 50 mm/min
  • Easy to Read Digital Liquid Crystal Display
Due to the fully variable speed limit the SL505 can perform a wide variety of tests such as Triaxial (both Quick Undrained and Effective Stress), CBR (to BS and ASTM standards), Marshall Tests and many more.

The microprocessor control has a unique rapid approach function. To position the ram quickly, the UP key is held pressed. After 2 seconds, the ram speed will accelerate to 50mm/minute. When the Up key is released, the speed will revert to 5mm/minute to avoid damaging the sample.

Whether in a research or a commercial environment, the Impact Digital Load Frame is affordable, reliable, efficient and easy to operate. An ideal solution to your testing needs.

Specification

Capacity 50kN
Speed Range 0.00001 to 50.8 mm/min
Vertical Clearance 1000mm
Horizontal Clearance 370mm
Platen Travel 100mm
Platen Diameter 158mm
Dimensions 430 x 480 x 1510mm (L x W x H)
Weight 100kg


ClickClick to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
