Standard Penetrometer

Standard Penetrometer

Standard Penetrometer
cone, cup, needles and penetration test gauge supplied separately BS1377-2
CodeSL190
British StandardBS1377-2
Weight (kg)11
Tariff902480 90
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

The standard penetrometer is sturdily constructed, with alight alloy base table with levelling screws, plated vertical rod and a micrometric vertical adjustment device. The slider is manufactured from brass with free fall. The dial, graduated in 0.1mm divisions round360°, has a diameter of 150mm.

The penetrometer is supplied with push-button stop and release, automatic zero set, micrometer adjustment and 50 and 100gweights.

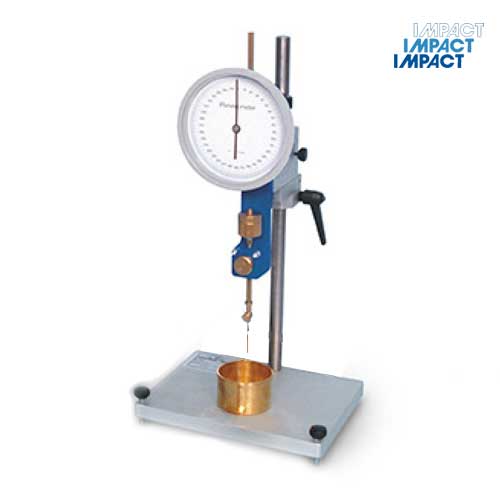

Picture shows penetrometer with cone. Please note that these are not supplied with the penetrometer and must be purchased separately, see below.

Dimensions:  220 x 170 x 410mm Weight: 11Kg

Cones, needles, penetration test gauges and penetration cups are available separately, see SL196, SL197, SL198, BM370, BM371.

Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
