25mm Strain/Displacement Transducer

25mm Strain/Displacement Transducer
25mm travel with DIN plug
BS1377-4, BS1377-7, BS1377-8
CodeSL722
British StandardBS1377
Tariff902610 91 0
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

Displacement Range* 6.5mm / 0.25 inch
Weight140g
Spring Force*200g
Excitation2 to 10V, AC or DC
Frequency Response*5-mm displacement: 100 Hz; 100-mm displacement: 10Hz
Rated (F.S.) Output*4.5mV/V
Non linearity (Best-Fit Method)*0.1% FS
ResolutionInfinite
Bridge Resistance (Nominal)350 ohms Bridge, 100K ohms Zero Balance
Temperature Range-10 to +60°C / +15 to140°F
Temperature Coefficient (%FS)*

Zero <0.01%/°C / Span<0.01%/°C
Zero <0.006%/°F / Span<0.006%/°F

Termination

0.18 in PVC7/0.008, 4-core shielded , 6.6ftlong
4.5 mm PVC 7/0.2, 4-core shielded, 2 m long

Electrical ConnectionsInput: Red(+) Black(-)
Output: Green(+) White(-)
*Typical figures: Actual values subject to calibration.

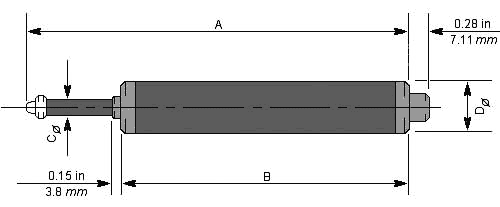

Dimensions mm:

Part No
A
B


SL720
104.2
88.6
4.8
17.4
SL721
109.2
88.6
4.8
17.4
SL722
138.2103.6
4.8
17.4
SL723
215.4155.2
4.8
17.4
