Dial Gauge 25mm travel x 0.01mm - clockwise

Dial Gauge 25mm travel x 0.01mm - clockwise

Dial Gauge 25mm travel x 0.01mm - clockwise
57mm diameter dial, clockwise rotation
CodeMH125
Tariff902610 91 0
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

  • Adjustable dial
  • Hardened & ground racks
  • Bezel lock
  • Lug back fitting
  • Tolerance pointers
  • Fitted with ball anvil
  • Anvil thread 2.5mm
Range Specifications:
Part No Dial
Diameter
Travel Graduations Reading Dial Colour
MH128 60mm 10mm 0.01 mm 0-100 c/w, 0-100 a/c White
MH125 60mm 25mm 0.01mm 0-100 c/w, 0-100 a/c
Black
MH127 76mm 50mm 0.01mm 0-100 c/w, 0-100 a/c
White
MH129 2.35 inches 1 inch 0.001 0-100 c/w, 0-100 a/c
Black

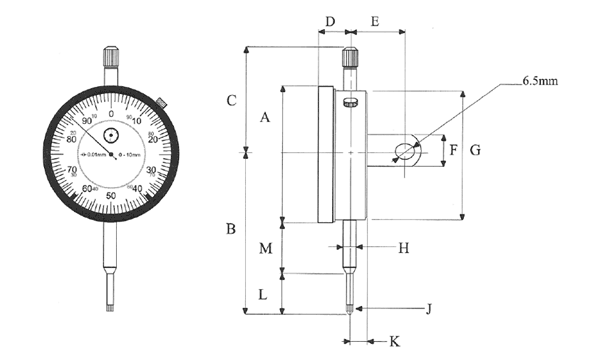

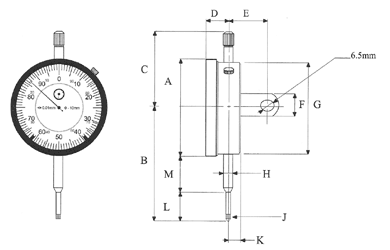

Dimensions:

P/N A B C D E F G H J K L M
MH128 (mm) 60 69 45 16 19.3 17.8 54.7 8 M2.5 8 20 18
MH125 (mm) 60 84 40 16 19.3 17.8 54.7 8 M2.5 8 36.6 18
MH127 (mm) 76 130 48 16.4 23.2 17.8 71 8 M2.5 8 59 33
MH129 (inches) 2.35 3.36 1.52 0.63 0.77 0.7 2.16 8.0 M2.5 0.32 1.42 0.73

Accuracy Specifications mm:

Range Graduations Total Revs Each 0.1mm Each 0.5mm Each 1.0mm Each 2mm Total Travel
mm mm

mm mm mm mm mm
0-1 0.001
1





0-5 0.01
5
0.005
0.008
0.01
0.015
0.016
0-10
0.01
10
0.005
0.008
0.01
0.015
0.020
0-25
0.01
25
0.005
0.008
0.01
0.015
0.030
0.50
0.01
50
0.01
0.015
0.02
0.025
0.045
0-100
0.01
100







Accuracy Specifications inches:

Range Graduations Total Revs Any 2 Revs
First 10 Revs
First 20 Revs
Total Travel
inches inches

inches
inches
inches
inches
1/4 0.001
2 1/2
0.001
N/A
N/A
0.0012
1/2 0.001
5
0.001
0.0015
N/A
0.0015
1 0.001
10
0.001
0.002
N/A
0.002
2
0.001
20
0.001
0.002
0.004
0.004
