Filler Compaction Apparatus to BS812-2 EN1097-4

Filler Compaction Apparatus to BS812-2 EN1097-4

Filler Compaction Apparatus to BS812-2 EN1097-4
base, guide rods, cylinder & plunger to to EN 1097-4, BS 812, CNR N. 23, NLT 177
CodeAG130
British StandardBS812-2
Other StandardsEN1097-4
Weight (kg)4
Tariff902480 90
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

The Filler compaction apparatus is used to determine the void content of dry compacted filler.

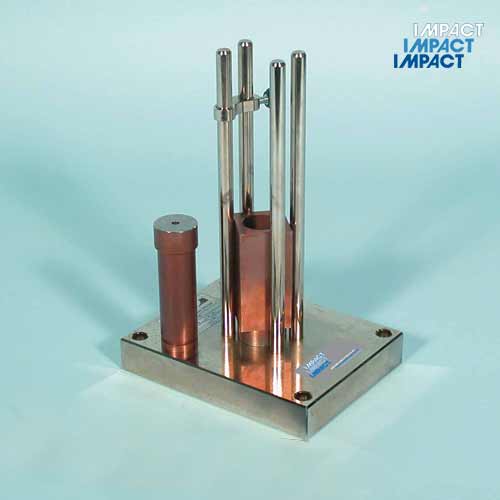

The apparatus consists of a cylinder having with an inside diameter of 25.4 mm, a plunger which slides freely into the cylinder with maximum lateral play of 0.20mm +/- 0.05 mm and guide rods, all mounted on a metallic base.

Weight: 4kg
