Compression machine concete 5000 kN (with servo valve)

Compression machine concete 5000 kN (with servo valve)

Compression machine concete 5000 kN (with servo valve)

High Performance Computer controlled Compression testing Machine

3000 / 4000 / 5000 / 6000 kN


ASTM C39, AASHTO T22, DIN EN 12390-3, 12504-1, 12390-6, EN 12390-13, EN 206





CodeCT501
Other StandardsASTM C39, AASHTO T22 DIN EN 12390-3, 12504-1, 12390-6, EN 12390-13, EN 206
Tariff90248000
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626

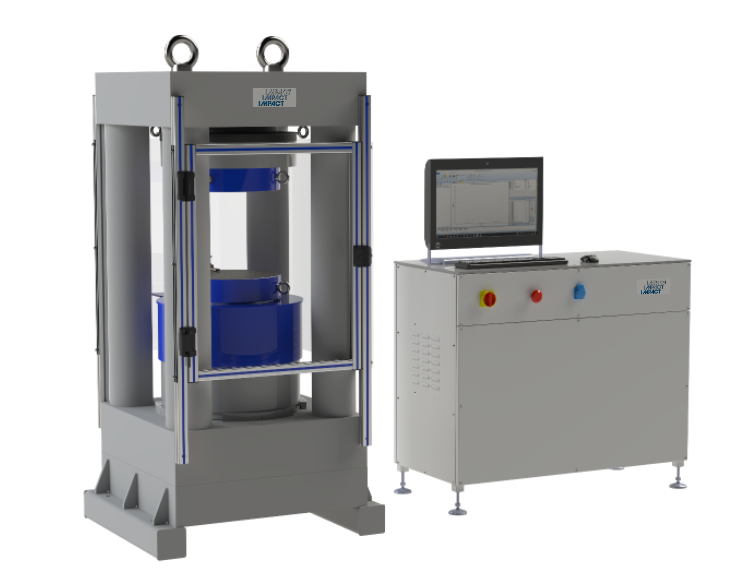

Compression testing machine for compressive strength testing of light, normal and heavy concrete,as well as ultra-high performance concrete (UHPC). According to DIN EN 7500-1 and EN 12390-4 in a very wide measuring range class 1:

  • Extremely solid and stiff 4-column frame

  • Large area test chamber protection made of polycarbonate protects against specimen splinters caused by explosion fractures

  • High-quality servo valve for pressure or volume flow control

  • Powerful hydraulic unit

  • Fast lift and bypass function for time-saving positioning of the test cylinder

  • DOLI EDCi Control electronics fully automatic test procedures suitable for force, displacement or deformation controlled tests with predefined loading speeds

  • Automatic break detection and free adjustable test end conditions

  • Readout and export of measurement data
