Volumetair Roller Air Meter

Volumetair Roller Air Meter

complete with accessories and case

Other StandardsAASHTO T196
Approx. Weight (kg)8.62
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

Plastic rolling volumetric air meter used for the rolling method of measuring entrained air in any concrete, performing well with lightweight mixes.

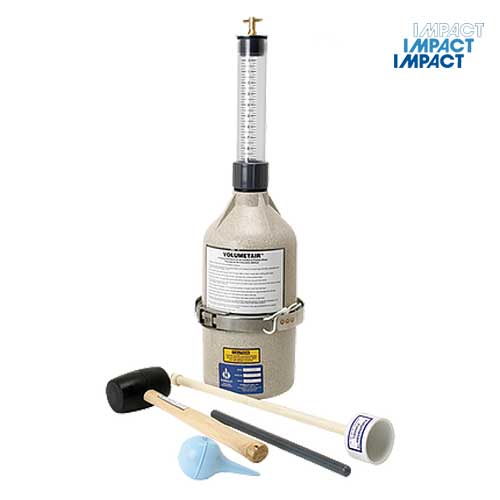

This ultra lightweight and easy-to-use instrument is manufactured from PVC and fibreglass reinforced plastic. The unit consists of a base and top housing, which fit together with a leakproof O-Ring seal and stainless steel over-center clamp assembly. It is supplied complete with the meter, funnel, syringe, tamper, calibration cup, mallet, strike-off bar and plastic carrying case.

The plastic materials used in the construction of this unit not only make it lightweight; but also allow the user to use water for clean-up and small amounts of muriatic acid for periodic cleaning. The sight tube has a range of 0 to 9% and the base volume is 134 cu. in. (2200ml)

Dimensions: 184mm diameter x 686mm high

Shipping Weight: 8.62kg
