Pundit Lab Plus Ultrasonic Tester with compressive strength & time stamp

Pundit Lab Plus Ultrasonic Tester with compressive strength & time stamp

to BS 1881 Part 203, EN12504-4, ASTM C 597-02, ISO1920-7:2004, IS13311, CECS21

British StandardBS 1881 Part 203
Other StandardsEN12504-4, ASTM C 597-02
Approx. Weight (kg)1.3
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

The Pundit Lab+ is an ultrasonic pulse velocity (UPV) test instrument which is used to examine the quality of concrete. This has all of the features of the Pundit Lab plus an extended feature set, making it particularly suitable for on-site measurements. The new functions include, an integrated gain stage making an external amplifier unnecessary when using long cables or exponential transducers, a real time stamp for recording the time of measurement, a data review list that allows previous measurements to be viewed on site, and a correlation to compressive strength either directly from pulse velocity or in combination with a rebound value (SONREB method).

New features in Pundit® Lab+

  • Integrated gain stage;
    Removes the need for an external amplifier when using exponential transducers and long cables.
  • Compressive strength measurement;
    Conversion curves for strength estimation can be created in the software and uploaded to the instrument to give instant strength estimations on site.
  • Combined estimates with rebound hammer;
    SONREB curves may also be uploaded onto the instrument for improved compressive strength estimates in combination with rebound hammer measurements.
  • Time stamp;
    A real time clock has been integrated to provide a time stamp to every measurement recorded. Review list; Saved measurements may be reviewed directly on site without the need for a PC connection.

Pundit Plus Features

  • Integrated waveform display
  • Remote control: A USB connection and the Pundit Link application allow full remote control of all features of the ultrasonic test equipment Pundit Lab.
  • Open interface: full remote control of the instrument is also possible with third party software
  • Direct data logging on the PC
  • Multiple Power Supply Options: the ultrasonic test equipment Pundit Lab runs on battery supply, mains supply via AC adaptor and can also be powered from a PC via the USB connection.
  • Wide range of transducers: The ultrasonic test equipment Pundit Lab supports a wide range of transducers from 24 kHz up to 500 kHz, making it suitable not only for concrete and rock, but also for other materials such as graphite, ceramics, woods, etc. Exponential transducers for rough surfaces and shear wave transducers for estimation of dynamic modulus of elasticity complete the portfolio.

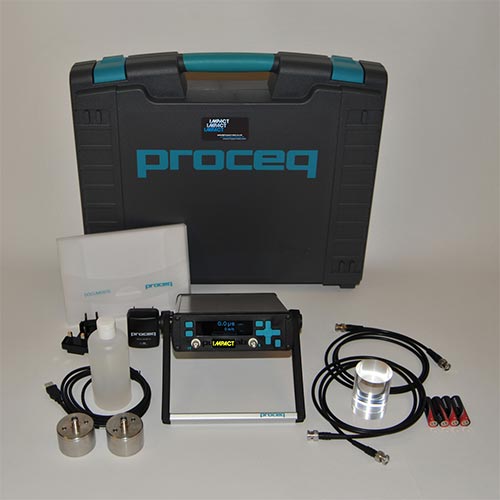

CN833 Supplied as: Display unit, 2 transducers (54kHz),
2 BNC cables 1.5 m, couplant, calibration rod, battery charger
with USB-cable, 4x AA(LR6) batteries, data carrier with
software, documentation and carrying case

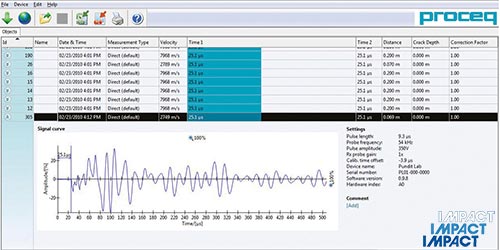

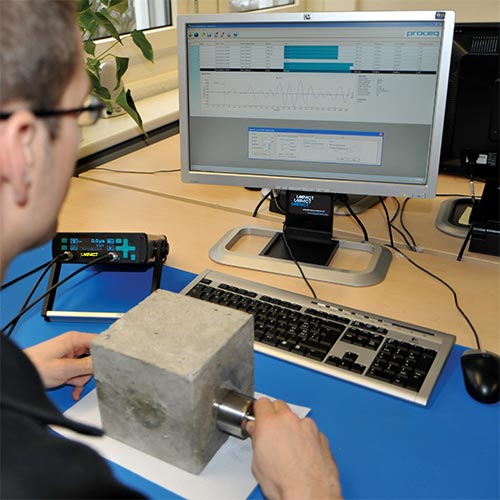

The Windows based software unlocks the full capabilities of the Pundit Lab+, providing the user with:
  • waveform visualization and analysis turning your PC into an oscilloscope interactive adjustment of trigger point
  • on-line data acquisition
  • full remote control of the instrument instrument including programmable data logging functionality
  • export of data to third party applications
  • creation of conversion curves for compressive strength (exponential, polynomial)
  • creation of SONREB curves for combined (ultrasonic/rebound value) estimates of compressive strength

Technical Data

Transit time measurement
Range 0.1 – 9999 µs
Resolution 0.1 µs
Display 79 x 21 mm passive matrix OLED
Transmitter Optimised energising pulse 125V, 250V, 350V, 500V, AUTO
Selectable gain steps 1x, 2x, 5x, 10x, 20x, 50x, 100x, 200x, 500x, 1000x, AUTO
Bandwidth 20 kHz – 500 kHz
Memory Non volatile, > 500 measured values
Regional Settings Metric and imperial units supported
Compressive strength units MPa, N/mm2, psi, kg/cm2
Power Supply
Battery 4x AA batteries (>20 hours continuous use)
Mains 5v, <500mA via USB charger
PC 5v, <500mA directly via USB cable
Dimensions 172 x 55 x 220 mm
Weight 1.316 kg (incl. batteries)
Environmental conditions
Operating temperature -10° to 60°C (0° to 140°F)
Humidity <95% RH, non condensing

Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
