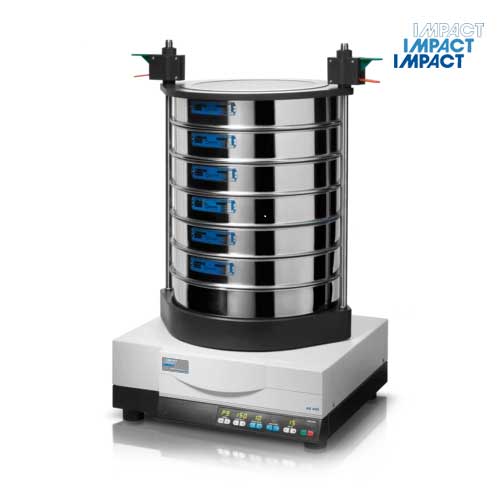

Sieve Shaker, horizontal circular motion, digital control
Sieve Shaker, horizontal circular motion, digital control
for 100mm, 150mm, 200mm, 305mm, 315mm, 400mm & 8 inch diameter sieves
CodeSV014
Approx. Weight (kg)70
Tariff847410 00 0
Save Page to PDF
This Sieve Shaker performs horizontal circular motions with a radius of 15mm to DIN 53477. The 50 to 300 rpm speed is electronically controlled & continuously adjustable to meet the requirements of the product to be sieved. The number of revolutions is digitally displayed. The base plate is driven by a robust, maintenance-free 125 Watt drive motor. The power is transmitted via an eccentric.
- sieving with circular sieving motion according to DIN 53477
- excellent separation efficiency even with short sieving times
- sieve stack up to 450 mm height
- free digital adjustment of all process parameters (time, speed or sieve acceleration, interval)
- memory for up to 9 programmes
- interval operation
- optional software available for control through RS232 interface (not included in standard unit)
- fulfils all criteria for measuring equipment related to ISO 9001
- maintenance-free
- easy operation, ergonomic design
Clamping device not included - see SV014/1
Specification
| Measuring range |
45 µm - 63 mm |
| Maximum batch/feed capacity |
5kg |
| Maximum fractions (depending on sieve size) |
7/9/17 |
| Maximum mass of sieve stack |
15kg |
| Speed (min-1) |
digital 50 - 300 |
| Time intervals |
yes, 1 - 10 min |
| Timer |
digital 1 - 99 min |
| Programs |
Maximum 9 |
| Test certificate |
Supplied |
| Accepts sieve diameter |
100mm - 400mm & 8 inch |
| Height of sieve stack |
up to 450mm |
| Vibration height |
controlled |
| W×D×H |
540mm × 507mm × 260mm |
| Weight |
70kg |
