Multi-Channel Thermometer with memory

Multi-Channel Thermometer with memory

3 channels with memory, PC software and USB cable

Tariff902480 10 0
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

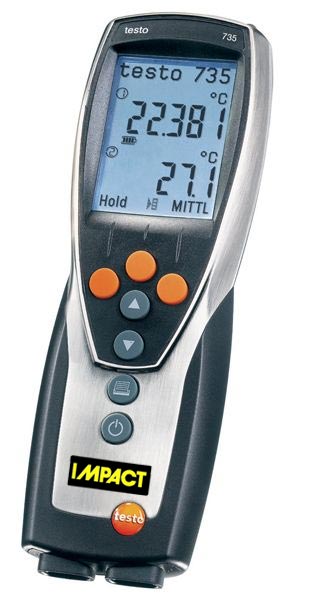

3 channel thermometer with readings memory, PC software and USB data transmission cable, with battery and calibration protocol
Probe not included - see TH059
The robust and compact measuring instrument with a probe socket for highly accurate Pt100 probes and two sockets for fast-action thermocouple probes. Readings from up to three additional temperature probes can be seen in the  instrument's clear display; data transmission is by radio, i.e. wireless. The measurement values can be simultaneously transferred to a PC and stored there.
In this way, a total of 6 channels is recorded by the measuring instrument. A system accuracy of 0.05 °C with a resolution of 0.001 °C is reached using the plug-in highly accurate Pt100 immersion/penetration probe. The measuring instrument is therefore ideally suited for use as a working standard. Temperature characteristics are recorded in the instrument and then analysed in graphics and tables on your PC/Notebook. Selectable user profiles, i.e. allocation of specific function buttons to an application facilitate intuitive and fast operation. Individual protocols or measurement series can be stored according to site. Up to 99 sites can be stored in the instrument. The storage cycle is user-defined between 0.5 seconds and 24 hours.
Optional Printer available
  • System accuracy up to 0.05 °C
  • Instrument memory for up to 10,000 readings
  • PC software for filing, analysing and documenting measurement data (included)
  • Displays and saves Delta T, min, max and mean values
  • Audible alarm if limit values are exceeded
  • Protection class IP65
  • Instrument memory for 10,000 readings
  • PC software for filing and documenting measurement data
  • Freely selectable storage cycle from 1 second to 24 hours
  • Accuracy over the entire measurement range thanks to system adjustment
  • The measurement values can be displayed in the instrument and simultaneously transferred to a PC and stored


Storage temperature -30 to +70 °C
Operating temperature -20 to +50 °C
Battery type Alkali manganese, mignon, Type AA
Battery life 200 h
Weight 428 g
Dimensions 220 x 74 x 46 mm
Material/Housing ABS/TPE/Metal
