Motorised Horizontal Shelby Tube Extruder

Motorised Horizontal Shelby Tube Extruder

Hydraulic 240V 1ph

Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

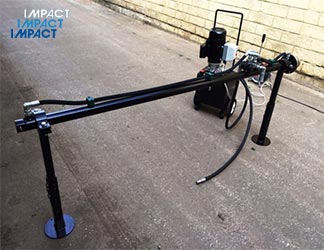

Hydraulic, Electric, Shelby tube extruder with adjustable legs.
Bolt on flange & detachable extruder piston options available as separate items to suit all sizes of Shelby tubes


Working pressure:  70 bar maximum @ 11.7ltrs per minute
Oil tank capacity: 30 litres
Cylinder: 1.5-tone push 50 mm bore
Travel time: 20 seconds to extrude 2000mm

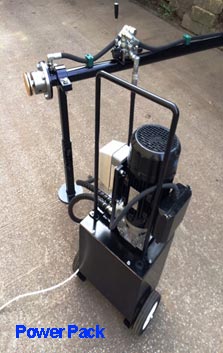

Power pack: 240V single phase 1.5kw
Adjustable legs
On/Off switch
