Canin+ for Corrosion Analysis with Rod Electrode

Canin+ for Corrosion Analysis with Rod Electrode

for corrosion analysis in areas below 20 m2

Approx. Weight (kg)14
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

Corrosion of Rebars in Concrete

Reinforced concrete will invariably be subjected to a corrosion process that ultimately leads to a total failure of the
structure. Accurate field potential measurements aid in detecting corrosion in rebars. Corrosion of steel in concrete is an
electrochemical process. A potential field can be measured on the concrete surface by the use of an electrode, known as a half-cell and a high-impedance voltmeter. The Canin+ Corrosion Analyzing Instrument highlights corrosion activity before rust becomes visible. Early detection is a key factor in preventing an unanticipated structural failure.

Corrosion Analysis allows the contractor to limit the maintenance tasks on reinforced concrete to the areas where it is really required. The Canin+ is the fastest instrument for corrosion analysis, offering a practical, cost-effective approach to the investigation of reinforced concrete. Corrosion analysis with the Canin+ allows a rapid, comprehensive test of the site and provides a fast assessment of locations where corrosion is likely to take place.

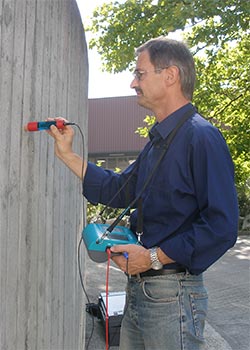

Corrosion analysis with the half-cell potential method: accurate field potential measurements aid in detecting active corrosion in rebars.


  • Immediate presentation of test area and reading directly on the instrument’s display
  • Total memory for 235’000 readings which can be stored
  • For further analysis, the Software allows downloading, presenting and editing data measured by this instrument for corrosion analysis

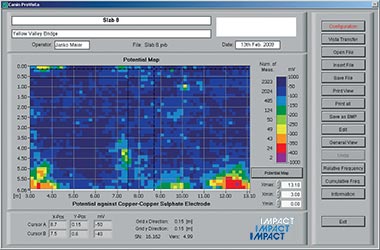

The Windows based software makes it possible to download, present and edit data measured by the Canin+ Corrosion Analyzing Instrument in a fast and easy way using any PC. The program generates a potential map, a relative frequency and a cumulative frequency diagram and provides a chipping graph. This statistical presentation is the basis for an efficient interpretation of the half-cell potentials by the corrosion engineer.

The software allows the engineer to rotate and mirror files.
Single potential maps can be combined to form a complete graph representing the total investigated surface area. These features support the fast generation of measurement reports. Data can be easily exported to third party software for further processing.

CN676 Supplied as:
Canin+ Configuration with Rod Electrode
Basic equipment
Indicating device Canin+, carrying strap, protection sleeve for indicating device, transfer cable, USB-serial adapter, operating instructions, carrying case Canin+
Rod Electrode accessories
Rod electrode with spare parts, electrode cable 1.5 m (4.9 ft.), cable coil 25 m (82 ft.), Canin ProVista PC software on memory stick, bottle with copper sulphate 250 g


Corrosion Analysis with the Potential Measurement
Measurement range -999 mV to +340 mV
Resolution 1 mV
Memory non-volatile memory for up to 235’000 measurements stored in up to 71 object files
Software Canin ProVista Software for downloading data and evaluation on PC
Battery operation six LR 6 (AA) batteries, 1.5 V for up to 60 h (or 30 h with activated backlight)
Memory non-volatile memory for up to 5’800 measurements stored in up to 24 object files
Data transfer by Windows Hyperterminal
Batteryoperation six LR 6 (AA) batteries, 1.5 V for up to 40 h (or 20 h with activated backlight)
Impedance 10 MΩ
Operating temperature 0° to 60° C
Storage temperature -10° to 60° C
Display 128 x 128 pixel graphic LCD with backlight
Data output RS 232 interface, USB with adapter
Case dimensions 580 x 480 x 210 mm (22.8 x 18.9 x 8.3 in.)
Weight net. 10.6 kg (23.5 lbs); shipping 14 kg (31.1 lbs)


Standard 2-year limited warranty on electronic parts of the Canin+ for corrosion analysis
