Digital Automated Rheometer

Digital Automated Rheometer

Digital Automated Rheometer
for field or lab use
CodeCE545
Approx. Weight (kg)6.8
Tariff90248000
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626

The Variable Automated Digital Rheometer measures rheological properties of Newtonian and non-Newtonian fluids and records this data directly to a USB flash drive.

This rheometer is equipped with a R1 Rotor Sleeve, B1 Bob, F1 Torsion Spring, and a stainless steel sample cup for testing according to American Petroleum Institute Specification RP 13B.

The Rheometer is suitable for field or laboratory use.
  • Pre-programmed API profiles for quick and efficient testing
  • Data recording for observing trends and analyzing, sharing, printing, or downloading data
  • USB port for connecting flash drive to save data (CSV) directly, computer not required
  • Resistance Temperature Detector (RTD) for 0.5oF accuracy and repeatability
  • Secure fit, left-hand turn for rotor/right-hand turn for bob to help prevent detachment when measuring high viscosity fluids
  • LED-lighted sample area for low-light locations
  • LCD backlighted panel for easier reading

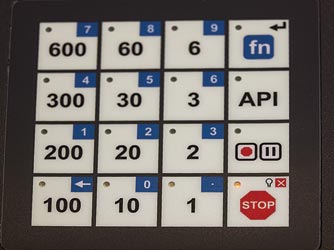

  • Push button design for easy operation and better control

Specification

Torsion Spring F1
Rotor-Bob R1, B1
Operating Temperature 40oF to 125oF (4.4oC to 52oC)
Temperature Measurements RTD
Temperature Accuracy 0.5oF
Sample Temperature 200oF (93oC)
Sample Cup Volume 350 ml
Automatic Tests 4 Pre-programmed API
Speed Range 12 preset; Variable 0.01 to 999 rpm
Speed Accuracy 0.001 rpm
Shear Rate Range 0.17 to 1700 sec-1
Dial Resolution 0.1
Dial Accuracy 0.5
Viscosity Range 0.1 to 9999 cP
Ports
Power RS485 Serial, USB
Data Port USB flash drive
Data Recording Speeds 100, 200, 500 ms; 1, 5, 10 sec
Dimensions  40.6 cm x 12.7 cm x 24 cm
Weight  6.8 kg
Power Requirement 100 to 250 VAC, 50/60 Hz, 75W
