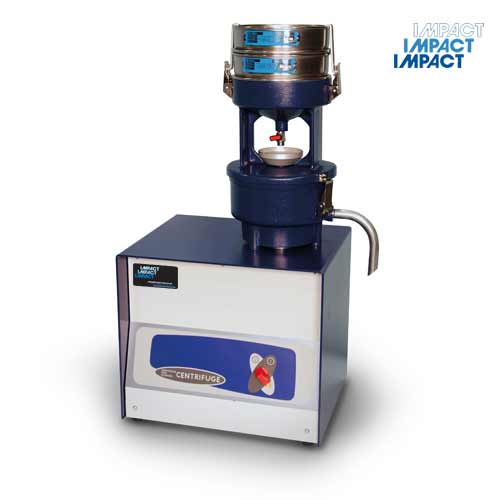

Continuous Flow Filterless Centrifuge

Continuous Flow Filterless Centrifuge

to EN 12697-1 ALL. B.2.1 - EN 13108 - DIN 1996 - CNR N. 38 - ASTM D1856

CodeBM058
Other StandardsEN12697-1
Approx. Weight (kg)60
Tariff90248000
Click to save page as PDF Save Page to PDF
addthis
or
Call Impact +44 (0)1294 602626

Designed for quick filterless separation of filler from a binder solution or other mixtures containing sediments (cement, soil, clay), in suspension. As no filter is required, there is no dispersion of material so that the highest accuracy is assured.
The solution is poured into the top funnel and falls into the rotating aluminium Beaker. Because of the centrifugal effect, the liquid rises vertically leaving the filler and mineral particles inside the beaker.

The centrifuge is supplied complete with one aluminium beaker, a 2mm aperture mesh sieve and a 0.063mm aperture mesh sieve.

The rotation speed is 11500 rpm, with automatic ramp and pre-set speed control.
Extraction capacity is up to 100g of filler per test.

Power supply: 230V 50Hz 1ph - 600 W
Weight: 60 kg



ClickClick to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
