Heavy Duty Platform Balance 150kg capacity x 5g
Heavy Duty Platform Balance 150kg capacity x 5g
Readability 5g
* External Calibration *
CodeBA260
Approx. Weight (kg)31
Tariff90248000
Save Page to PDF
User Selectable Parameters
- Internal Count Value, all Display Segment, Capacity x Division Check
- Date and Date Format Check/Set
- Time Check/Set
- System Initialization
- Auto Power Off Time x 6
- Backlight Brightness x 9
- Independent Enable/Disable Weight Units x 3.
- Filter Intensity Mode x 6
- Animal Function, Auto Tare, Repeated Tare, Keypad Buzzer, Check Buzzer, Enable/Disable
- Serial Ports Settings
- Print Formats for Weighing, Counting, Percentage Animal weighing and Check Mode
- Near Zero Function Set
- Calibration & Parameters Check

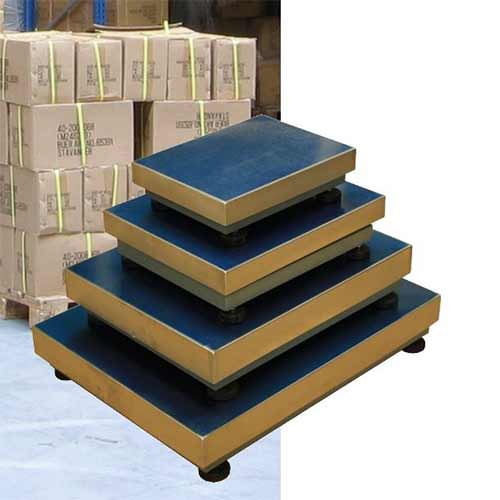

Platform Specification
| Capacity |
150kg |
| Division |
5g
|
| Platform size |
500mm x 400mm x 140mm |

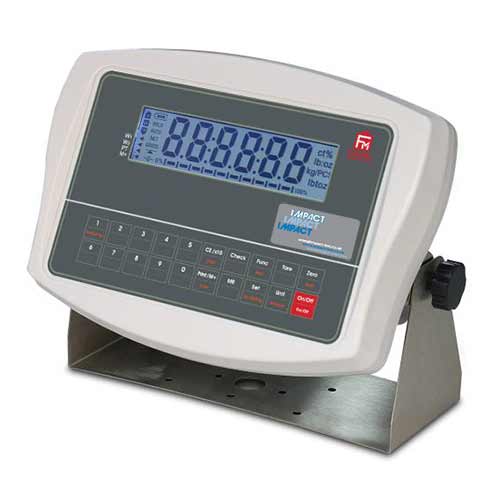

Indicator Specification
| Capacity x Division |
Free Setting. Support Single and Dual Weighing Range |
| Weight Units |
Metric (kg and g) and Imperial (lb) |
| Internal Resolution / Stability |
3.2 million (compressed from 16 million) / +1ppm |
| Tare Range |
- Max (Subtractive Tare) |
| Display |
· 6 x 1-inch Wide Angle LCD Numeric Digits
· Capacity Tracking Bar to Show Applied & Remaining Capacity |
| Date Time |
Built-in Real Time Clock |
| Communication Ports / Connection Supports |
· 2 x Independent RS232 Port (Serial and TTL),
· 1 x Control Output Port (PLC and Relays Control)
Support Communication with: - PC, Receipt Printer, LP-50 Label Printer, Remote Display, Relays, PLC, and other Peripherals |
| Load Cell Excitation Voltage |
5V DC |
| Load Cell Connection |
Supports both 4-wire and 6-wire Load Cell System |
| Maximum Load Cell Connection |
12 x 350Ω / 24 x 700Ω Load Cells |
| Power Sources |
· Built-in Rechargeable Battery = 6V, 4AH
· External Power Adaptor = DC 12V , 1A |
| Battery Recharging & Protection |
Intelligent Digital Controlled Progressive Charging System |
| Accessories |
Rechargeable Battery, Backlight, Pillar Mount Holder (ψ35~38mm), Universal Power Adaptor Plugs x 4 |
| Operation Environment |
-10 ~ 40oC. Non-condensed. R.H.≦ 85% |
