Marshall Test Load Frame

Marshall Test Load Frame

compact bench mounted unit

British StandardBS598-107
Approx. Weight (kg)100
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

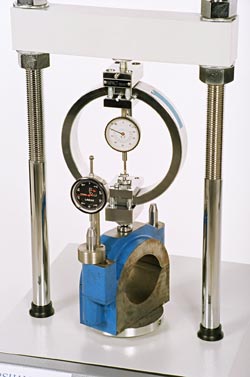

Additional items required to perform the test such as load ring, flow dial gauge, breaking head stability mould etc. are not supplied as part of the Marshall load frame.

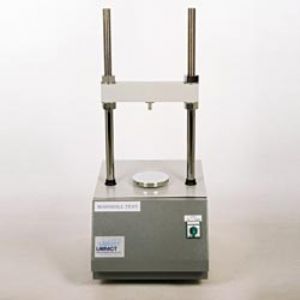

The Impact BM220 Marshall machine is a motorised load frame specifically designed to carry out Marshall tests.
  • It is a bench-mounted system with a motorised drive.
  • The speed is pre-set to 50.8 mm per minute.
  • Rapid platen adjustment is provided complete with a limit of travel safety switch.
Packed dimensions: 500mm W x 750mm L x 1130mm H

Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site
