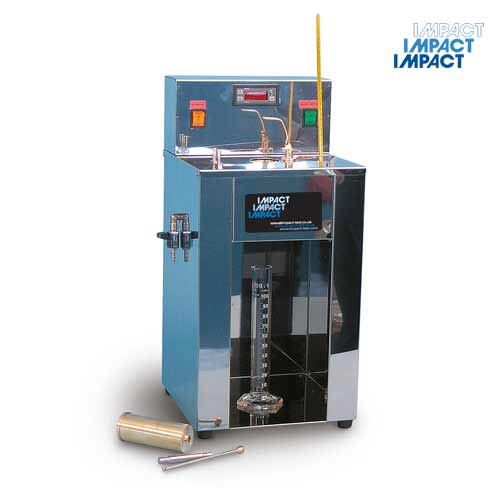

Used to determine the viscosity of cut-back bitumen and road oil.
Consisting of a stainless steel bath, stirrer, electric heater with digital thermo-regulator and cooling coil. A dual safety thermostat prevents excessive temperatures.
Supplied complete with a thermometer IP 8C range 0-45°C x 0.2°C and a 100ml capacity graduated glass cylinder.
Power supply: 220-240V 50Hz 1ph 300W
Dimensions: 265mm x 270mm x 550mm
Weight: 12kg
Accessories (available separately)
BM462 Cup and Go/No Go Gauge, 10mm diameter orifice
BM463 Cup and Go/No Go Gauge, 4mm diameter orifice
Click to view a PDF file of the User Guide
A user guide is available to download from the Impact web site www.impact-test.co.uk
