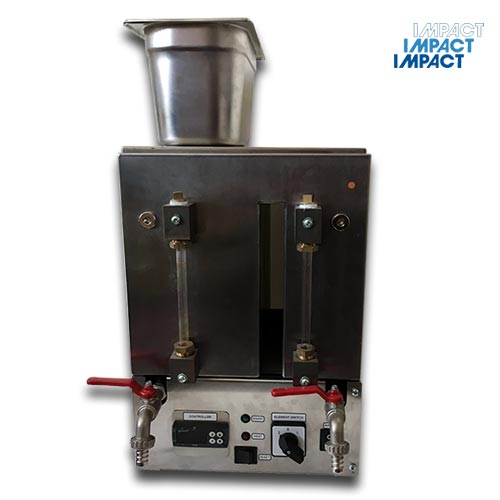

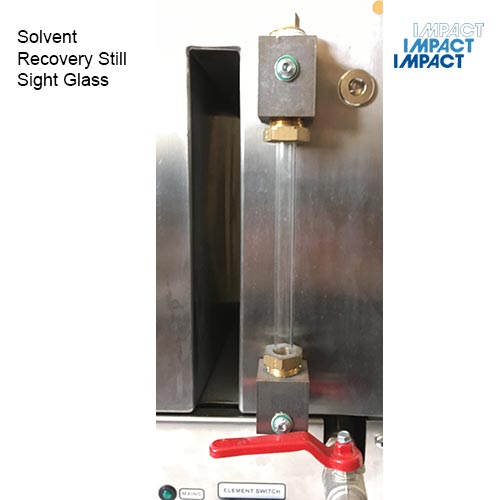

Totally self contained and compact stainless steel still. 10 litre per hour capacity. Provided with two tanks; one for dirty solvent and one for clean solvent. Each tank has a sight glass to check the level in the tank. The water coolant system connects to a tap.
A safety cut out is activated when the solvent level becomes too low or once the process is completed.
Power supply: 220-240V 50/60 Hz 1ph 1300 W
Dimensions: 320mm x 400mm x 650mm (approx)
Click to view a PDF file of the User Guide
A user guide is available to download from the Impact web site www.impact-test.co.uk
