Single Door Oven 250 litre capacity

Single Door Oven 250 litre capacity

Temperature range 40-200 deg C, with digital control & readout

CodeOV720
Approx. Weight (kg)85
Tariff90248000
Click to save page as PDF Save Page to PDF
addthis
or
Call Impact +44 (0)1294 602626

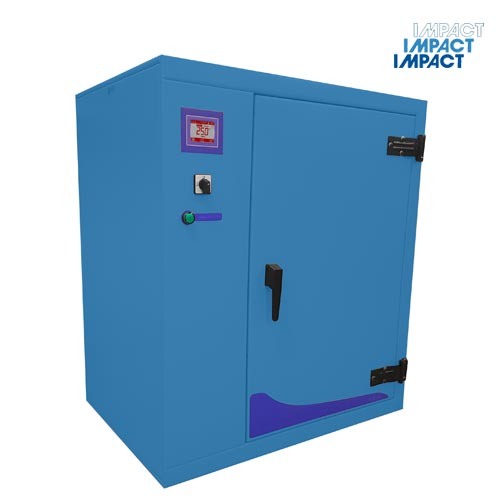

Image shows 250 Litre Oven

This oven is designed for drying large quantities of soils and aggregate samples and maintains temperature over the range of 40 to 200 deg C in accordance with most BS and ASTM requirements. Feature the latest touch screen control system, which offers intuitive control and excellent accuracies designed for soil drying ovens.

Features

  • 3.2in touch screen control
  • On screen historical trending (48hours)
  • Auto reset overheat protection
  • Fan assisted circulation
  • Excellent stability (<1.0 ºC)
  • Low temperature uniformity

Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD).

Fitted with fixed shelf runners and removable chrome plated wire grid shelves.

Heating

Heated by Incoloy sheathed elements positioned in the either the base or side of the unit. Fresh air is entered into the oven and passed across the heating element and into the chamber. Air is then continuously circulated around the chamber with around 15% expelled through the top vent which is replaced with the incoming air.

Controls

The control system comprises of a bespoke touch screen user interface that offers both accurate temperature control and an integral overheat system by using 2 individual PT100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.

Specification

Internal dimensions H x W x D 910 x 510 x 520mm
External dimensions H x W x D 1270 x 690 x 690mm
Weight 85kg
Capacity 250 litres
Number of shelf positions 7
Shelves supplied 5
Power 2000W, 8 Amps
220/240V 50Hz 1ph



Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
