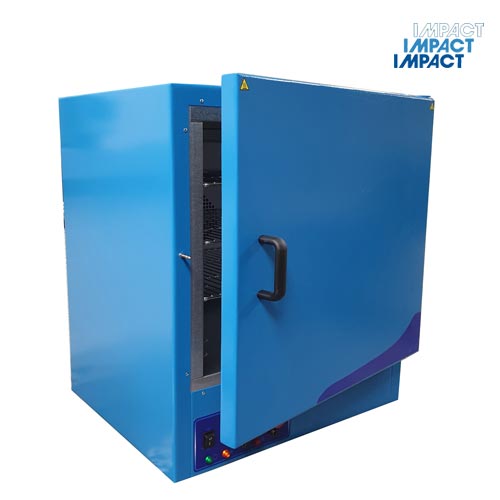

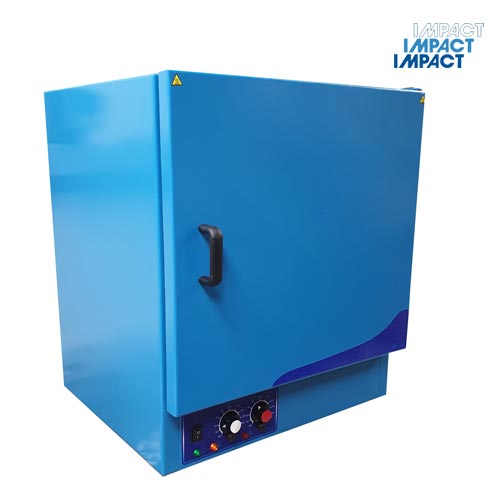

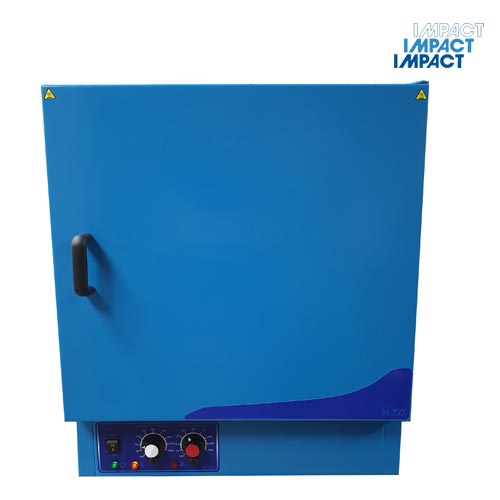

Image shows 50 litre oven
The oven exterior is constructed from acrylic coated sheet steel. The interior chamber is made from mild steel coated with aluminium (CLAD).

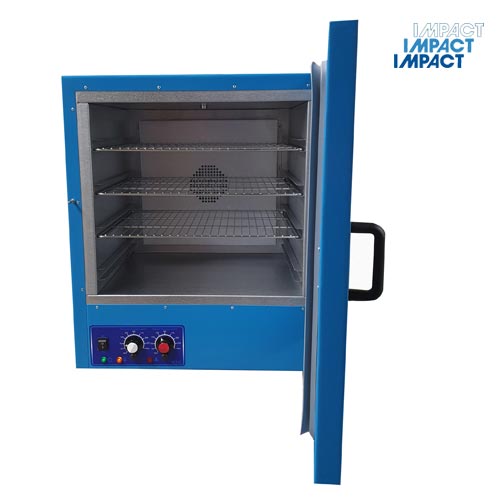

Fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a mercury-in-glass thermometer. The oven controls are fitted below the door.
Heating is provided by Incoloy sheathed elements;
fitted around the fan on the back wall of the chamber.
The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include a mains switch with indicator, heat and overheat indicators.
|Internal dimensions H x W x D
||550 x 490 x530mm
|External dimensions H x W x D
||810 x 610 x800mm
|Number of shelf positions
1500W, 6 amps
