Concrete Test Hammer Type N - Impact

Concrete Test Hammer Type N - Impact

to BS1881:202, EN12504/2, ASTM C805, DIN 1048

British StandardBS1881-202
Other StandardsEN12504-2
Approx. Weight (kg)2
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

Suitable for finished concrete structures and buildings with strength resistances from 10 to 70 N/

This concrete test hammer has an aluminium frame and ensures high precision test results.

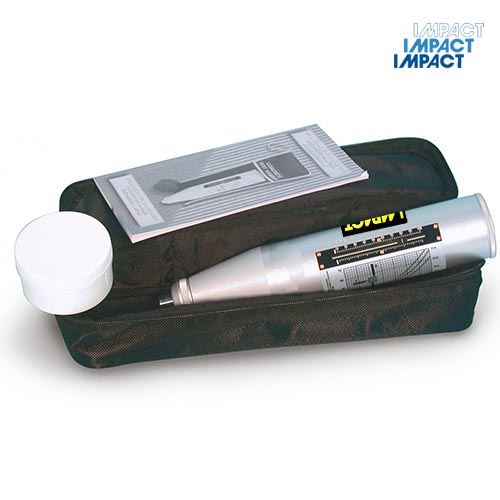

Supplied complete with calibration curve chart in N/mm² (Mpa) values, abrasive stone, carrying case.

Range : 10-70 Nmm:
Impact Energy : 0.225 mkg.(2.207 Joule or Nm)
External parts Aluminium
Dimensions : 330 x 100 x 100 mm
Weight : 2 Kg

Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site
