Air Entrainment Meter Type A

Air Entrainment Meter Type A

Air Entrainment Meter Type A
to EN 12350-7, BS 1881:106, UNI 6395, ASTM C231 TYPE A, NF P18-353, UNE 7141
CodeCN025
British StandardBS1881-106
Other StandardsEN12350-7
Approx. Weight (kg)13
Tariff90248000
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626

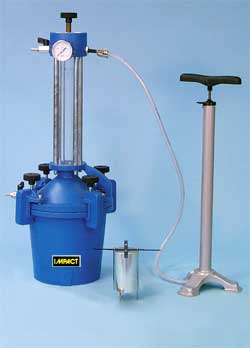

Made from cast aluminium alloy, this type A air entrainment meter records the percentage of air entrained in freshly mixed concrete. Operation is by the the air pressure principle.

It is supplied complete with pressure gauge, tamping rod and hand pump.

Air content range0÷8%
Divisions0.1%
Dimensions250mm diameter x 700mm high
Weight13kg

Click Click to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
