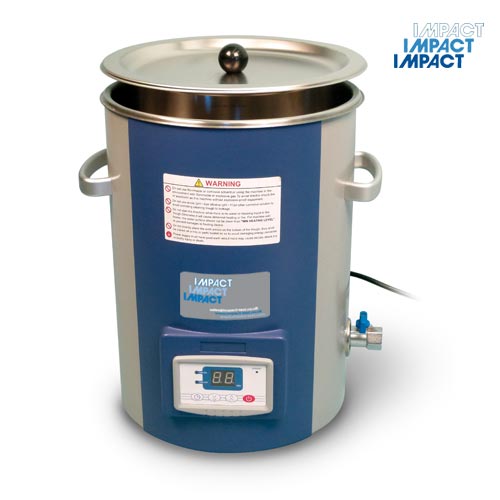

Ultrasonic cleaning baths use cavitation to remove dirt from objects that are immersed in the cleaning liquid. Cavitation is the sequential formation and collapse of vapour bubbles and voids in a liquid subjected to acoustic energy at high frequency and intensity. Cavitation occurs wherever the liquid penetrates, ensuring that the smaller and larger aperture sieves are cleaned equally well. Ultrasonic baths are particularly suitable for fine mesh sieves and fragile items such as glassware.
The 10 litre cleaning bath has an internal diameter of 260mm and a height of 200mm, accommodating sieves of up to 200mm & 8 inches diameter.
Cleaning baths are manufactured from stainless steel, supplied complete with a 0 - 99 minute timer, lid and discharge valve. The ultrasonic generator is suitable for continuous operation.
Specification
| Capacity: |
10 litres |
| Maximum sieve diameter: |
200mm 8 inches |
| Timer: |
0 - 99 minutes |
| Dimensions: |
274mm diameter x 370mm high |
| Rating: |
200W |
| Power supply: |
230V 50/60Hz 1ph |
| Weight: |
8kg |

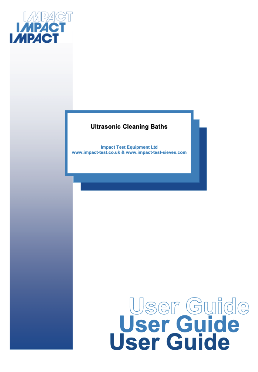

Download User Guide
