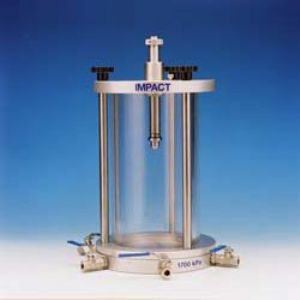

Triaxial Cell for 105mm diameter samples and pressures up to 1700kPa

Triaxial Cell for 105mm diameter samples and pressures up to 1700kPa

Triaxial Cell for 105mm diameter samples and pressures up to 1700kPa
BS1377-7, BS1377-8
Non-standard sample accessories available on request
CodeSL530
British StandardBS1377-7
Other StandardsISO 17892-8
Tariff90248090
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626



Impact's triaxial cells are designed to withstand corrosion, manufactured from aluminium alloy and Perspex. The cell bases are pre-drilled with 4 take-off positions. All cells are fitted with 4no-volume change valves.

All of our triaxial cells are designed to withstand a working pressure of 1700kPa.

Triaxial cells are available in 3 sizes as below.

Part Number Sample Size
SL525 35mm to 50mm diameter
SL530 70mm to 105mm diameter
SL535 150mm diameter

Standard accessories are available to test samples of the above sizes.

Non-standard sample accessories are available on request. Please contact Impact with your particular requirements.





ClickClick to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
