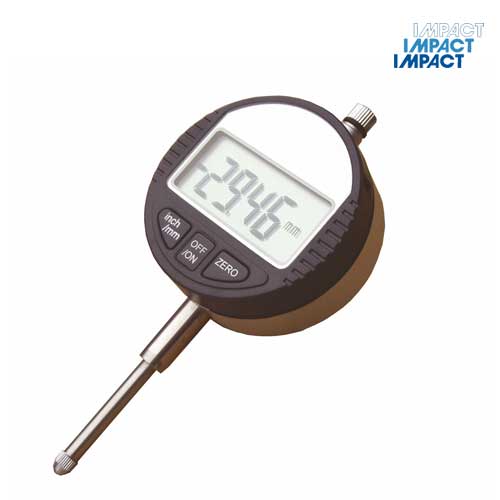

Digital Dial Gauge 25mm travel x 0.01mm

Digital Dial Gauge 25mm travel x 0.01mm

with imperial/metric display

Approx. Weight (kg)0.3
Tariff902610 91 0
Click to save page as PDF Save Page to PDF
Call Impact +44 (0)1294 602626

Measuring Range: 0-25mm/0-1"
Resolution: 0.01mm / 0.001"
Repeatability: 0.01mm / 0.001"
Accuracy: +/- 0.02mm

Width: 100mm
Height: 60mm
Length: 160mm


Measuring speed: 1.5m/sec. / 60"sec.
Clear LCD display Extra Large 14mm digits
3 buttons: On/Off,Metric/Inch conversion,Zero reset
Lug back
Fitted with ball anvil
Anvil thread M2.5mm
Stem Diameter: 8mm
Power: 1.5V SR-44 Silver Oxide Cell
