This device is used for the determination of resistance to fragmentation.
EN1097-2 specifies two test methods, one is the Los Angeles Abrasion Machine (AG175) and the other is the Impact Tester.

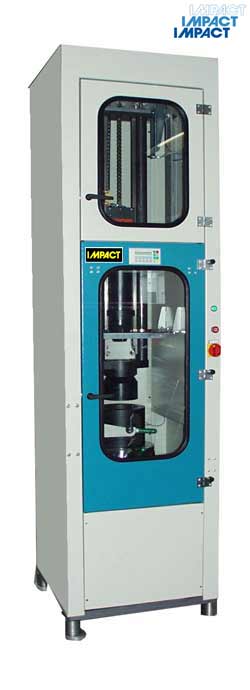

The machine consists of a frame and anvil, specimen holder with 170mm diameter mortar and pestle and a motorised lifting device and drop hammer with ram head.
|Drop weight ||50kg |
|Dimensions (approx) ||750 x 900 x 3000mm |
|Weight (approx) ||1400kg |
|Electrical supply ||400V 50Hz 3ph |
Click to view a PDF file of the User Guide
A user guide is available to download from the Impact web site www.impact-test.co.uk
