20kg Clegg Impact Hammer

20kg Clegg Impact Hammer

20kg Clegg Impact Hammer
20kg weight hammer with wooden carrying case
CodeSL119
Approx. Weight (kg)50
Tariff902480 90
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

The 20kg Clegg Impact Soil Tester is designed for use on hard materials such as those employed in roadworks.

Here the tester may be used in obtaining data for estimating the traffic carrying potential of lightly surfaced low traffic roads.

The Clegg Test involves dropping the hammer mass 5 times at each location and the 4th reading is used as the measurement of interest.

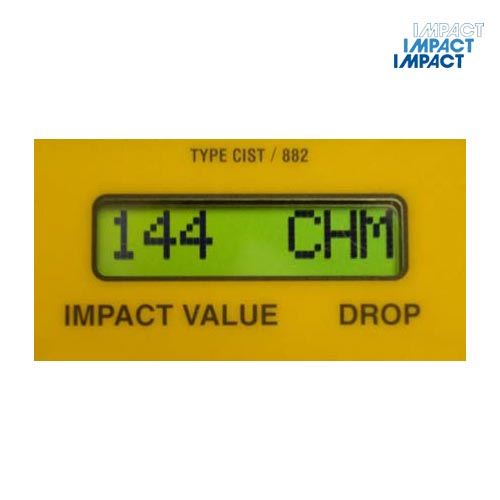

The Surface Modulus of the flexible pavement is measured in terms of Mega Pascals and calculated as per Dr Baden Clegg’s original work ‘in the field’. The measurement Clegg Modulus or CHM is displayed on the readout unit after the 5th hammer drop. Time and date stamped data logging of site tests and wireless transfer to PC is provided by the Readout Unit.

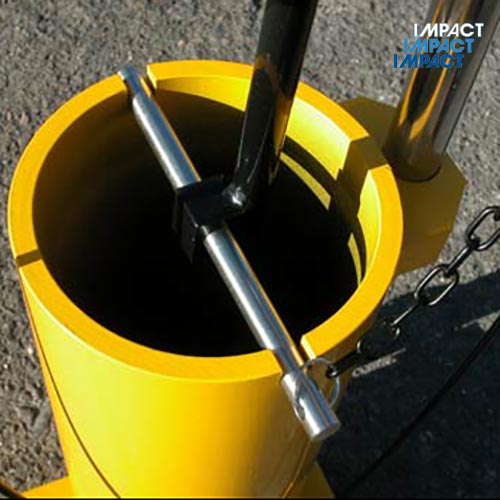

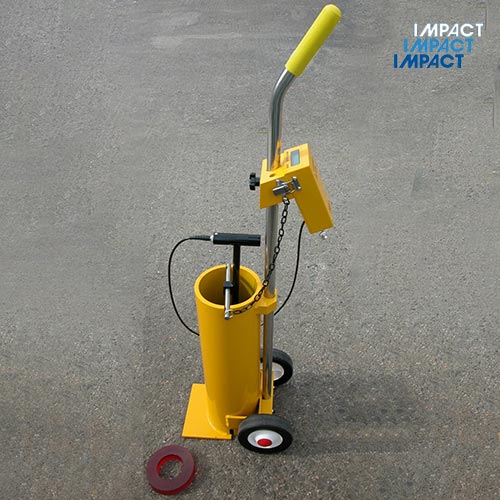

The hammer has a mass of 20kg and a diameter of 130 mm. To simplify carriage and handling, the Guide Tube tube is fitted with wheels, making it into a pull-along cart.

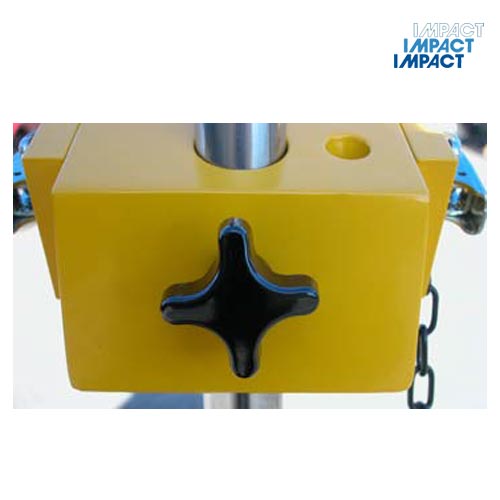

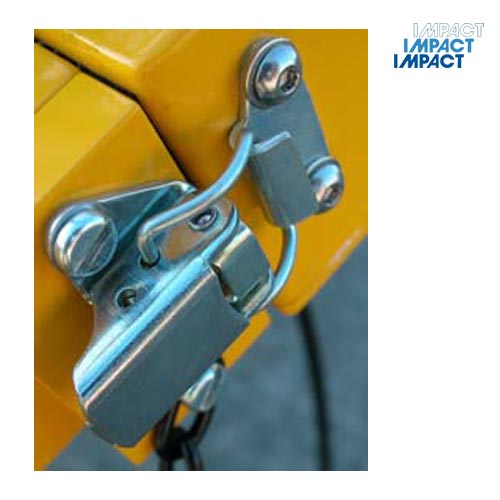

The Readout is fixed to an adjustable mount that can be moved in height and rotation to suit the user.


Specification
Items Supplied 20 Kg Hammer & T Handle, Guide Tube Assembly, CIST/883 Readout with Bluetooth™, Hammer to Readout Cable, Test Ring, SDi Software for Microsoft Windows PC, Operating Manual & Calibration Certificate.
Readout Display (alphanumeric) Vertical display with readout unit clamped to Adjustable Mount.
Readout Range Up to 101 Impact Values (IV).
On Site Confidence Check Check Ring provided giving typical 22 IV Test Reading - Indicates Operation OK.

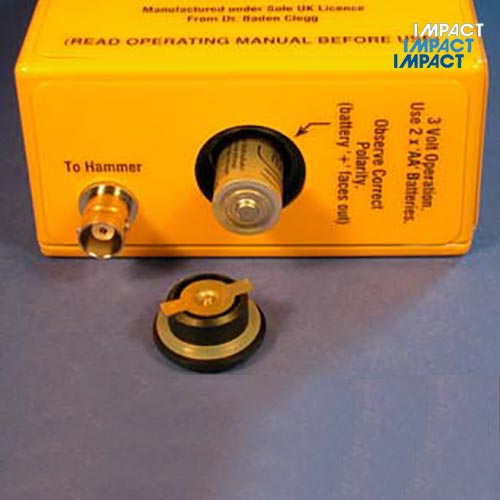

Power Source Low power 3V operation: Two ‘AA’ Cells, type Alkaline, NiMH or Lithium located in battery holder at base of readout, sealed to IP67. 12 month typical battery life.
Battery Level Displayed at switch-on.
Power ‘On’ & Controls Single push button. Auto switch off after 5 minutes from last reading.
Data Storage in Readout Flash Memory for up to 10,000 5-drop test readings. Each field contains the 5 drop IV readings, time & date of each test, TREND result validity pass/fail flag & CHM.
Data Transfer Method Bluetooth™ Wireless data transfer. No cables & hence easy connection to Windows PC or laptop.
Data Type when Transferred Comma Separated Variable (CSV) data for manipulation in third party packages such as Excel™. Up to 10,000 x 5-drop test storage & output.
Readout Displaying CHM Software Selectable Clegg Hammer Modulus display from Readout LCD.
Readout Q. A. Firmware SoftwareSelectableTRENDAlgorithmchecks inter-IVreadings&Readout advises user if surface being tested has failed (Readout displays ‘ABORT’).
System Software PC Software provided to facilitate data transfer, real time test view, time/date setting and configuration set-up. Very easy to use.
Transit / Storage Case Wooden case for storage and protection in transit. Size & Weight (approx). 123 x 41 x 41 cm. Instrument weight 30 Kg. Packed weight in case 50 Kg.
