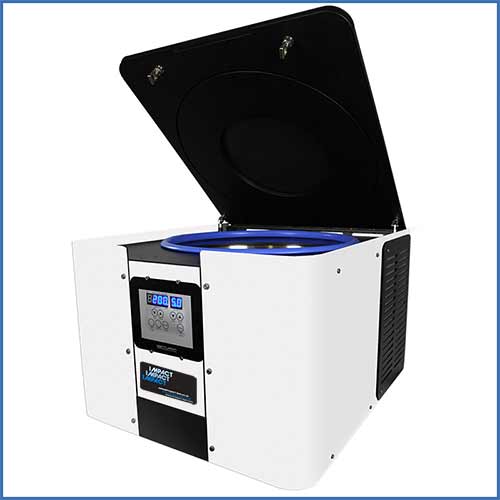

Variable Speed 3 litre Non-Refrigerated Digital Centrifuge

Variable Speed 3 litre Non-Refrigerated Digital Centrifuge
4 x 750ml buckets, 750W, 230V 50/60Hz
CodeBM032
British StandardBS598
Weight (kg)65
Tariff902480 90
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

Features

  • Bright blue LED display
  • Rotor recognition
  • 10 acceleration rates & 10 deceleration rates
  • 10 program memory
  • Timer 0-99 minutes & Hold in 30 second increments
  • Pulse short run
  • Run in speed (rpm) or rcf (G) in 10 rpm increments
  • Orientation acceleration rate
  • Sound <60db (rotor dependent)
  • Extra thick stainless steel bowl
  • Port to lid
  • Alloy & steel frame (zinc coated)
  • World leading industrial grade inverter
  • Best quality European brushless motor
  • High technology airflow (ambient mode)
  • All centrifuges have user accessible service sections to access all safety parameters

Safety Features

  • Multi point lid locking
  • Emergency lid release
  • Lid Spring Strut
  • Lid lock detection
  • Imbalance detection
  • Overspeed sensor
  • Set inverter values
  • Barrier ring
  • Motor overheat sensor
Specification
Speed 500-15,000 Rpm
(10 Rpm steps)
Rcf Max 22,000 G
Timer 0-99 Mins & Hold
(30 sec steps)
Dimensions HWD 375 x 600 x 630mm
Weight 63.5 Kg (without rotor)
Power 750 Watts
Memory 10 programs
Accel rates 10 programs
Decel rates 10 programs

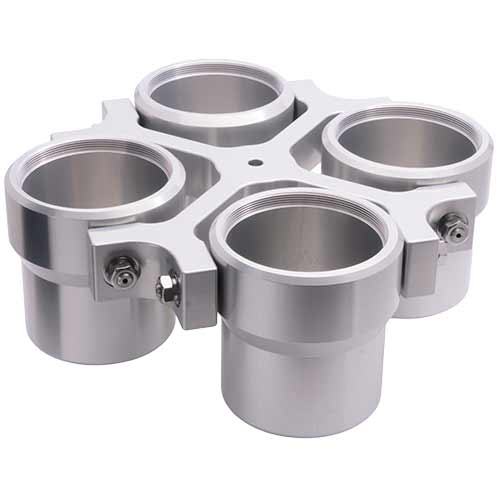

Swing Out Rotor Specification
Tube size max 98 x 170mm
Minimum speed 500rpm
Maximum speed 4000rpm
Maximum Rcf(G)
4000
Radius max
22.5cm
Tube angle 0 degree
Acceleration time
45 seconds
Deceleration time
45 seconds
Autoclavable (times) 121C (20)
Minimum Temperature 4C (at 23C ambient)
