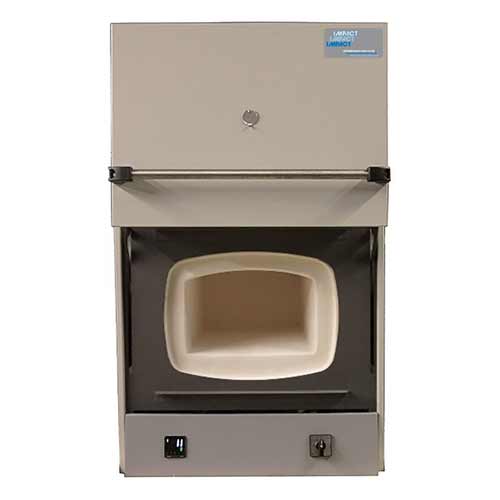

Muffle Furnace 1100 deg C, 22 litre

Muffle Furnace 1100 deg C, 22 litre
22 litre capacity to EN 196-2, EN 196-21, EN 459-2
CodeOV240
Weight (kg)58
Tariff902480 90
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

Universal precision laboratory electric furnace, designed for materials testing, heat treatment, ceramic and stoneware samples firing. The furnace is equipped with a counterbalanced lift-up door door.

Features

  • Maximum temperature 1100°C
  • High thermal efficiency vacuumed ceramic fibre chamber
  • Heating elements on all four sides embedded in fibre
  • High quality thermo-insulation materials used throughout
  • Microprocessor temperature controller Omron E5CC
  • Optional fan assisted chimney for ashing etc.
  • Door safety interlock switch
  • Ceramic bottom plate
  • Fast heating time due to low thermal mass construction
  • Hermetic door seal. Low power consumption
  • Good stability and uniformity
  • One year warranty
  • Optional extras include connection to PC, audible over temperature alarm & UKAS thermal survey

Specification

Maximum Temperature
1100 °C
Chamber Type
Fibre Muffle
Controller
1/16th DIN Size
Run/Stop Modes
Settable Heating Ramp Rate
Basic Timed Program:
Ramp, Dwell, Stop.
Chamber Dimensions W x D x H 275mm x 500mm x 155mm
Chamber Capacity 22 litres
External Dimensions W x D x H
600mm x 890mm x 610mm
Power 3 KW
Weight 58kg


ClickClick to view a PDF file of the User Guide

A user guide is available to download from the Impact web site www.impact-test.co.uk
