60 Litre Pan Mixer with 4 wheels, 230V

60 Litre Pan Mixer with 4 wheels, 230V
suitable for fine and coarse grained mixtures up to a grain size of 16mm
CodeCN084
Weight (kg)162
Tariff902480 90
Click to save page as PDFSave Page to PDF

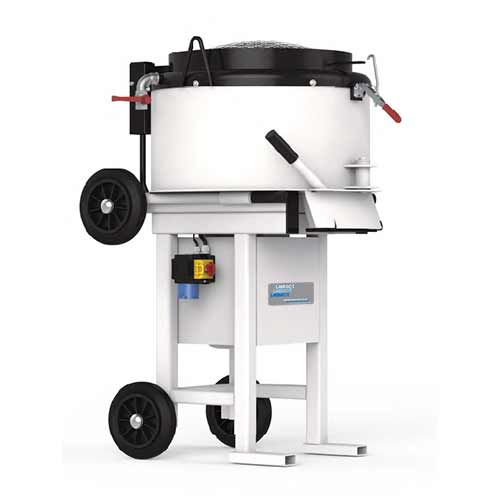

60 litre pan mixer with a practical 4-wheel system for optimum mobility, even over steps.

The specially-developed universal mixing unit with adjustable mixing unit parts and maintenance-free direct transmission guarantees excellent mixing results, even when using the smallest amounts. It is suitable for fine and coarse grained mixtures up to a grain size of 16mm.

Quick drainage is carried out via a segmental valve in the base of the drum. In this case the necessary safety is provided by the installed drainage protection grid.

This CE-compliant high-performance pan mixer is of extremely robust construction with special safety devices, such as the hinged protection grid with linked limit switch. The most important design criteria also include the high quality solid construction, which means that the 60 litre pan mixer has a very long lifespan.

Specification

Motor

230 V, 2.00 kW

Gearbox

40 1/min

Drum capacity

100 l

Mixing amount

60 l

Overall height

215 mm

Overall width

675 mm

Overall length

825 mm

Drum diameter

642 mm

Drum height

310 mm

Filling height

1215 mm

Drainage height

650 mm

Weight

162 kg

Paintwork

RAL 1013

Tyres

Solid rubber

Miscellaneous

Hinged protective grid
